Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

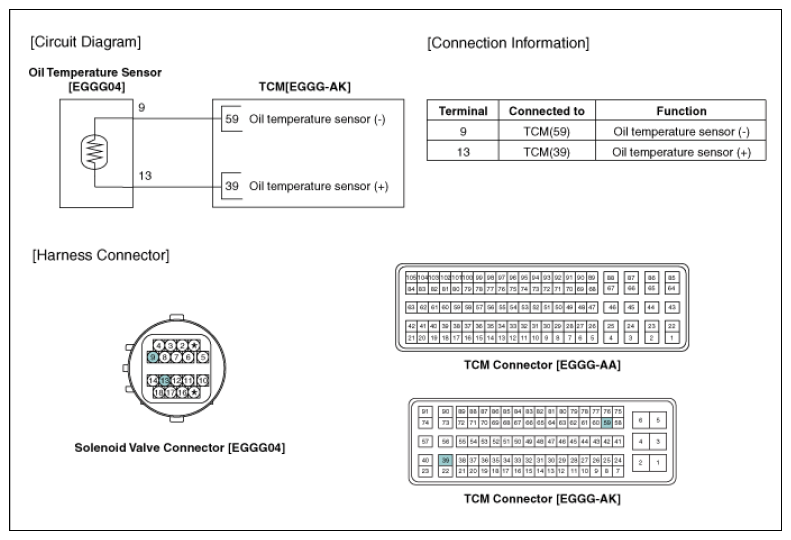

Fig 1: Transaxle Oil Temperature Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
