Optical Sensor Inspection

Check the power tailgate control module input/output value by using the diagnostic tool. If the operation of tailgate control module is abnormal, replace power tailgate drive unit.
When checking the optical sensor, select a vehicle type and "POWER SLIDING/TAILGATE" menu.

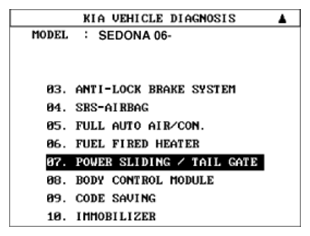

Fig 1: Scantool Display - Power Sliding/Tailgate
Courtesy of KIA MOTORS AMERICA, INC.
Select "POWER TAIL GATE".

Fig 2: Scantool Display - Power Tail Gate
Courtesy of KIA MOTORS AMERICA, INC.
Select the sensor output. And then check the optical sensor volt while operating power tailgate in power mode.

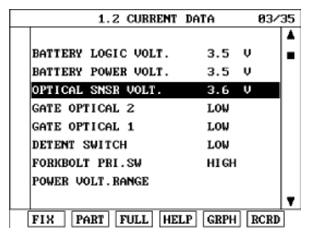

Fig 3: Scantool Display - Optical Sensor Volt
Courtesy of KIA MOTORS AMERICA, INC.
Change the drive unit, if there is no change during operation.
