Cluster Replacement

Remove the cluster fascia panel.

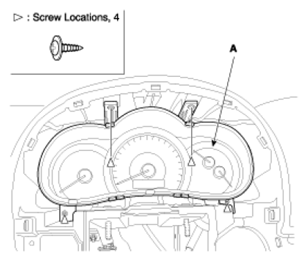

Loosen the screws.

Fig 1: Cluster
Courtesy of KIA MOTORS AMERICA, INC.

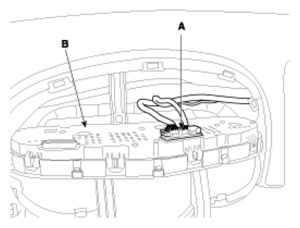

Disconnect the cluster connectors (A), then remove the cluster (B).

Fig 2: Cluster & Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector are plugged in properly.
