Shroud Replacement

  1. Loosen the screws.
  2. Disconnect the connector, then remove the shroud assembly (A).

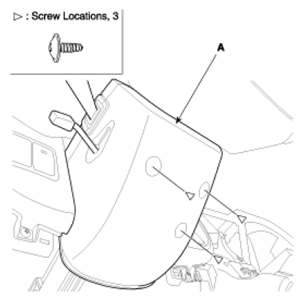

    Fig 1: Shroud Assembly
    G07396007Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
