Quarter Glass Replacement

Remove the antenna cable (A).

Fig 1: Removing Antenna Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear pillar trim.
Loosen the mounting screw.

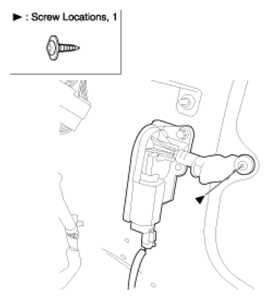

Fig 2: Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the quarter glass mounting bolts, then remove the quarter glass (A).

Fig 3: Quarter Glass
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
