Repair Procedures: Removal

Remove the front wheel speed sensor mounting bolt (A) and the wire bracket mounting bolt (B).

Fig 1: Front Wheel Speed Sensor & Wire Bracket Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wire bracket bolt (A).

Fig 2: Wire Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

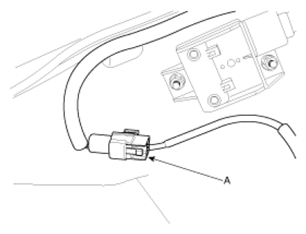

Fig 3: Wheel Speed Sensor Connector

Courtesy of KIA MOTORS AMERICA, INC.
