Wheel Runout
- Jack up the vehicle and support it with jack stands.

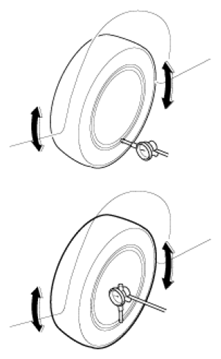

- Measure the wheel runout with a dial indicator as illustrated.
- Replace the wheel if the wheel runout exceeds the limit.
WHEEL RUNOUT SPECIFICATION
| Limit |
Radial |
Axial |
| Runout mm (in) |
Steel |
0.7 (0.028) |
1.1 (0.043) |
| Aluminum |
0.3 (0.012) |
0.3 (0.012) |
Courtesy of KIA MOTORS AMERICA, INC.
