Repair Procedures: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crash pad of the driver's side.

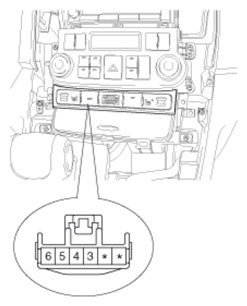

    Fig 1: ESC OFF Switch Connector End View
    G07389541Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
Fig 2: ESC OFF Switch Continuity Chart
G07389542Courtesy of KIA MOTORS AMERICA, INC.
