Components Location

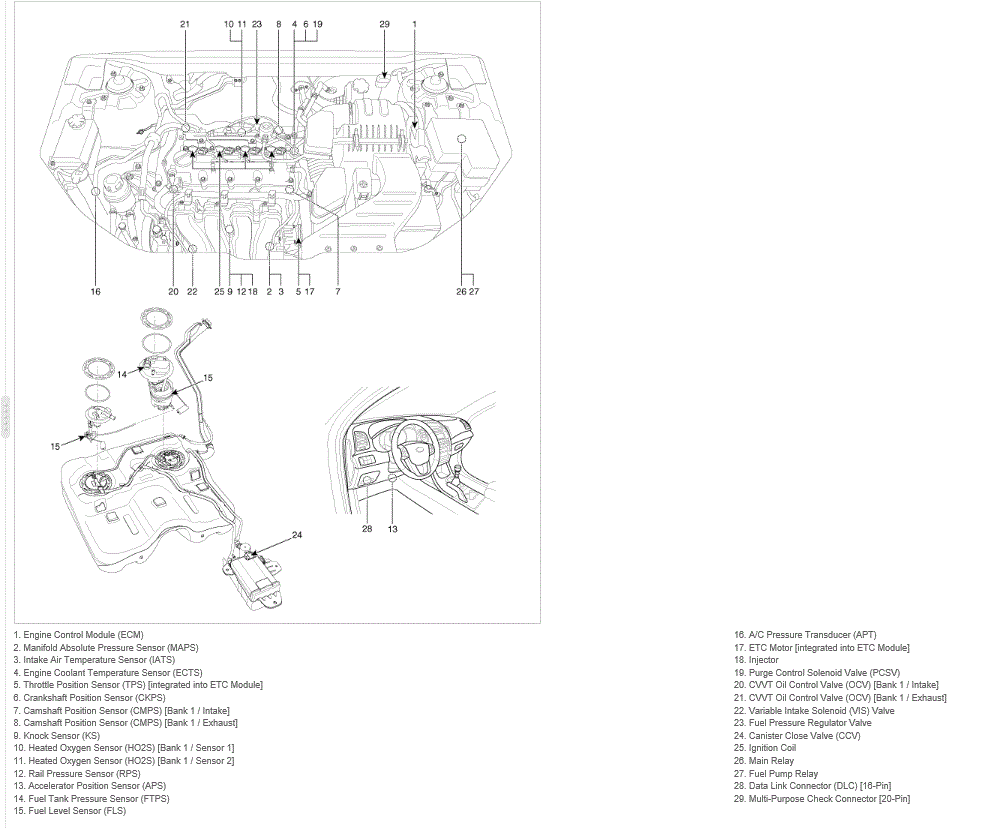

Fig 1: Engine Control System Components (1 Of 5) (VIN 6)
G00575862Courtesy of KIA MOTORS AMERICA, INC.

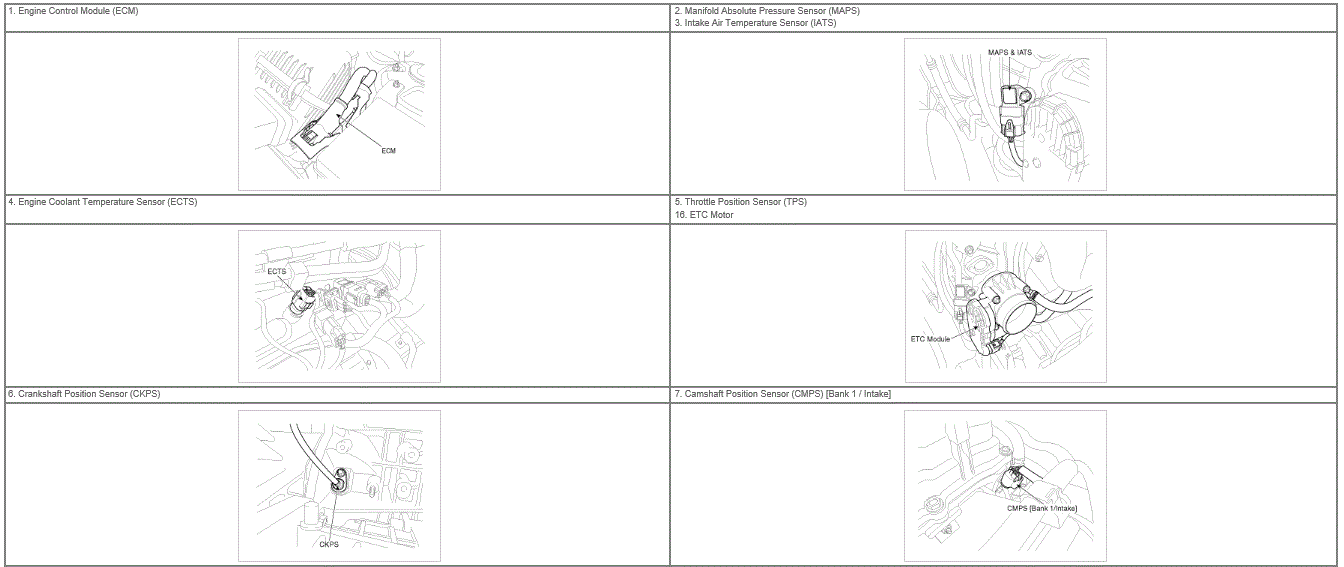

Fig 2: Engine Control System Components (2 Of 5) (VIN 6)
G00575863Courtesy of KIA MOTORS AMERICA, INC.

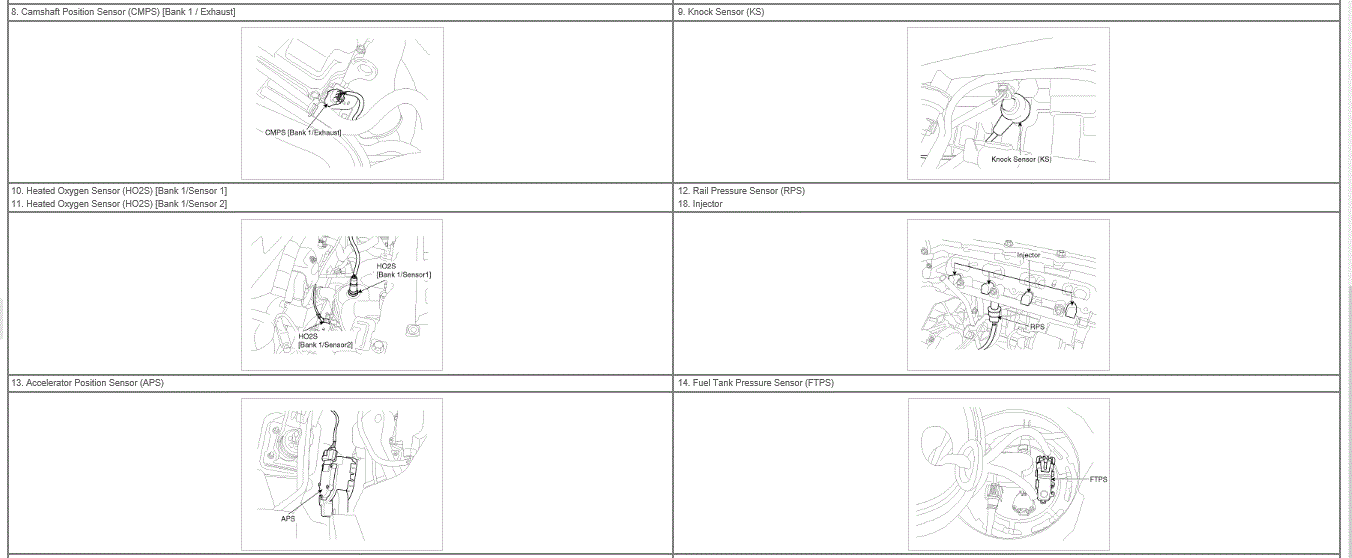

Fig 3: Engine Control System Components (3 Of 5) (VIN 6)
G00575864Courtesy of KIA MOTORS AMERICA, INC.

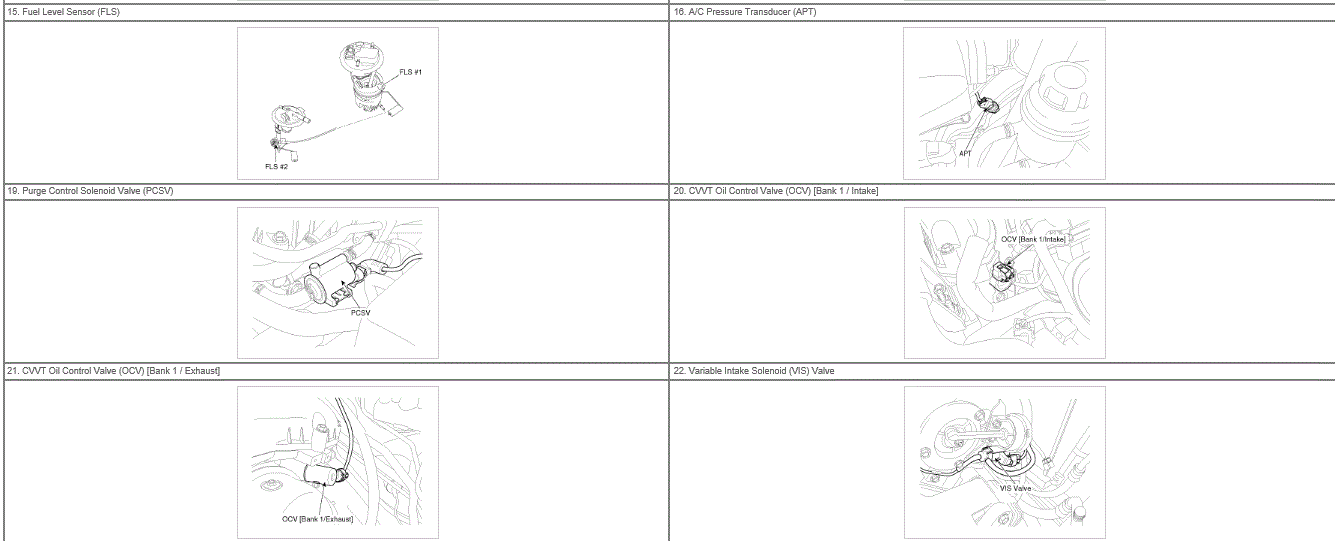

Fig 4: Engine Control System Components (4 Of 5) (VIN 6)
G00575865Courtesy of KIA MOTORS AMERICA, INC.

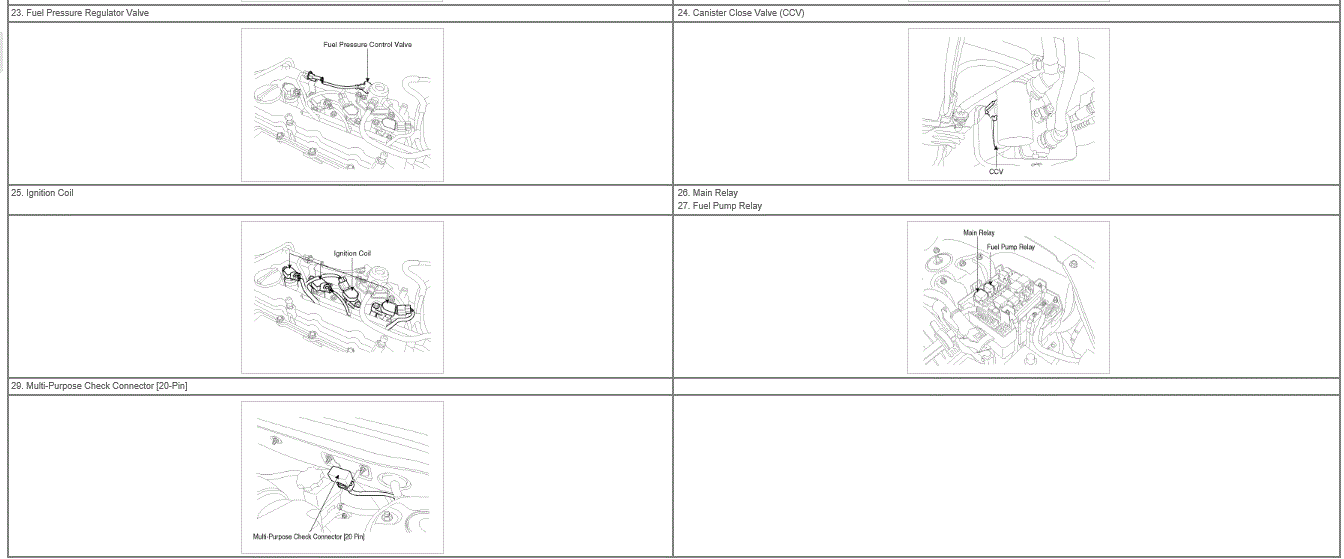

Fig 5: Engine Control System Components (5 Of 5) (VIN 6)
G00575866Courtesy of KIA MOTORS AMERICA, INC.
