Sorento Base, 2.4L Eng VIN 6, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.4L GDI
›
Engine Control Module (ECM) (VIN 6)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

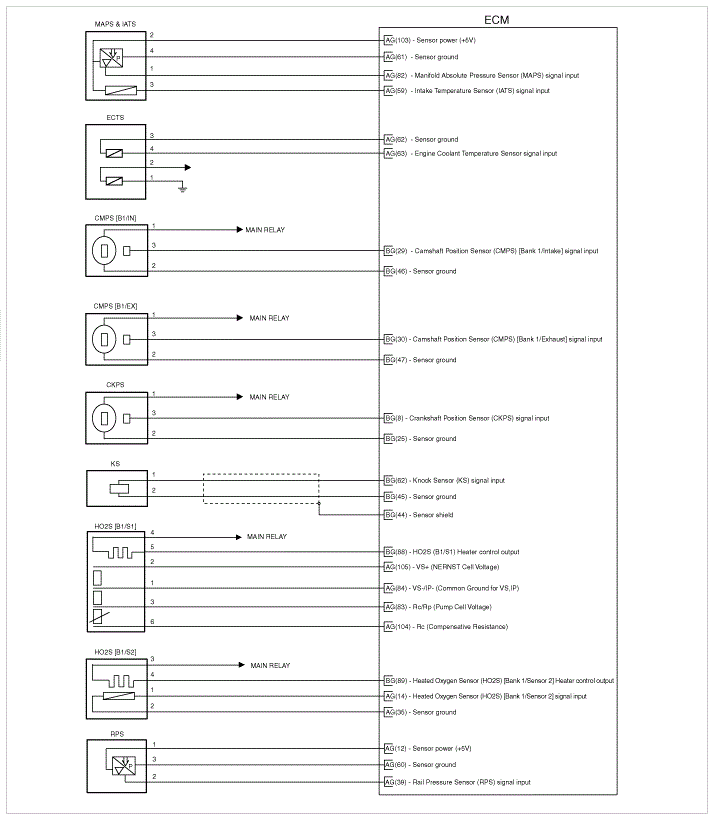

Fig 1: Engine Control System Circuit (1 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.

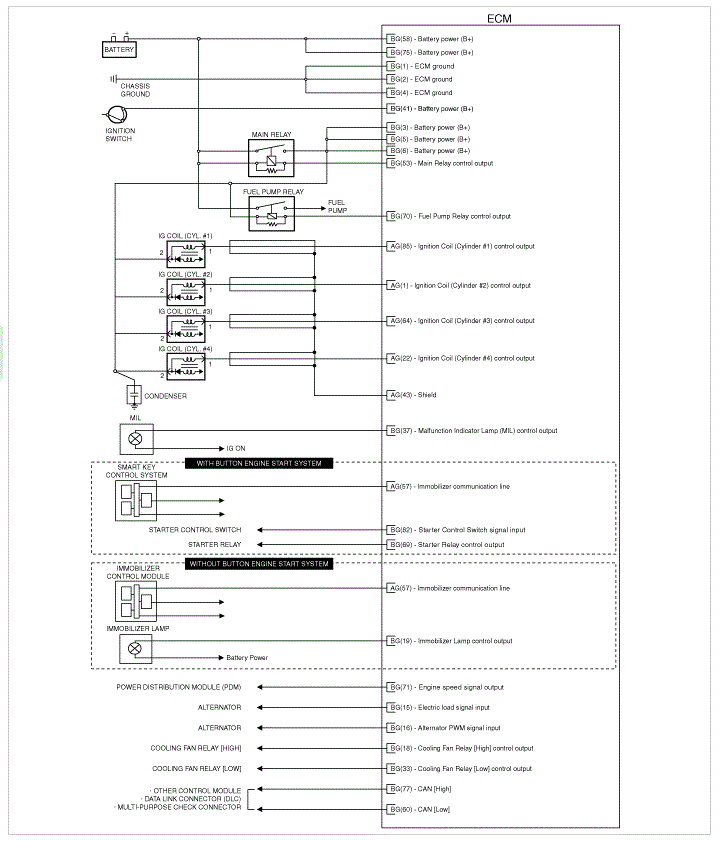

Fig 2: Engine Control System Circuit (2 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Engine Control System Circuit (3 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Engine Control System Circuit (4 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
