General Information: General Description

This is DTC which is related with communication error between PDM and other units.

Body CAN communication Control Units : BCM(Body Control Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key), RPAS(Rear Parking Assist System).

LIN communication Control Units : IPM(Intelligent integrated Platform Module), DDM(Drive Door Module), ADM (Assist Door Module), IMS(Integrated Memory System-PSM.

^*1 CAN(Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.

^*2 LIN(Local Interconnect Network) : LIN is serial communication type which is used in electrical control system.(This is less expensive.)

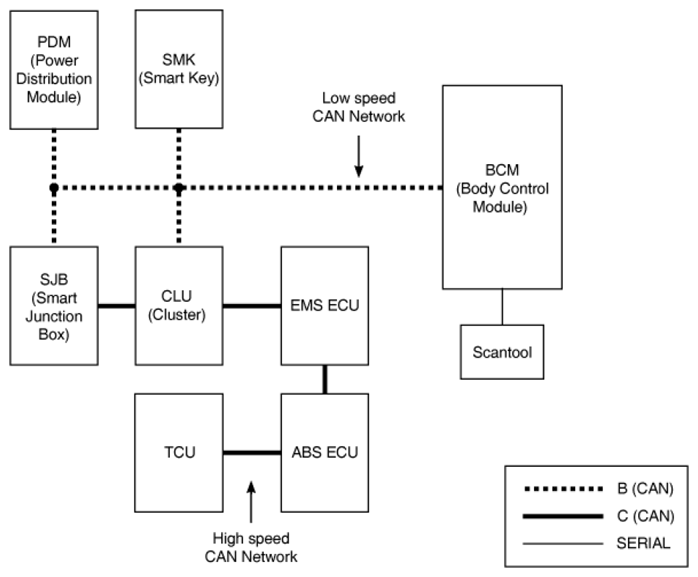

Fig 1: Low Speed And High Speed CAN Network

Courtesy of KIA MOTORS AMERICA, INC.
