Overhead Console Replacement

After loosening the mounting screws, then remove the overhead console assembly (A).

Fig 1: Identifying Overhead Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.

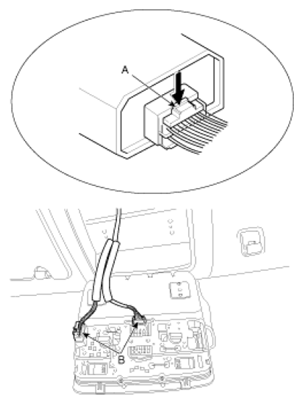

Push the lock pin (A), disconnect the connectors (B).

Fig 2: Pushing Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
