Timing Chain: Components

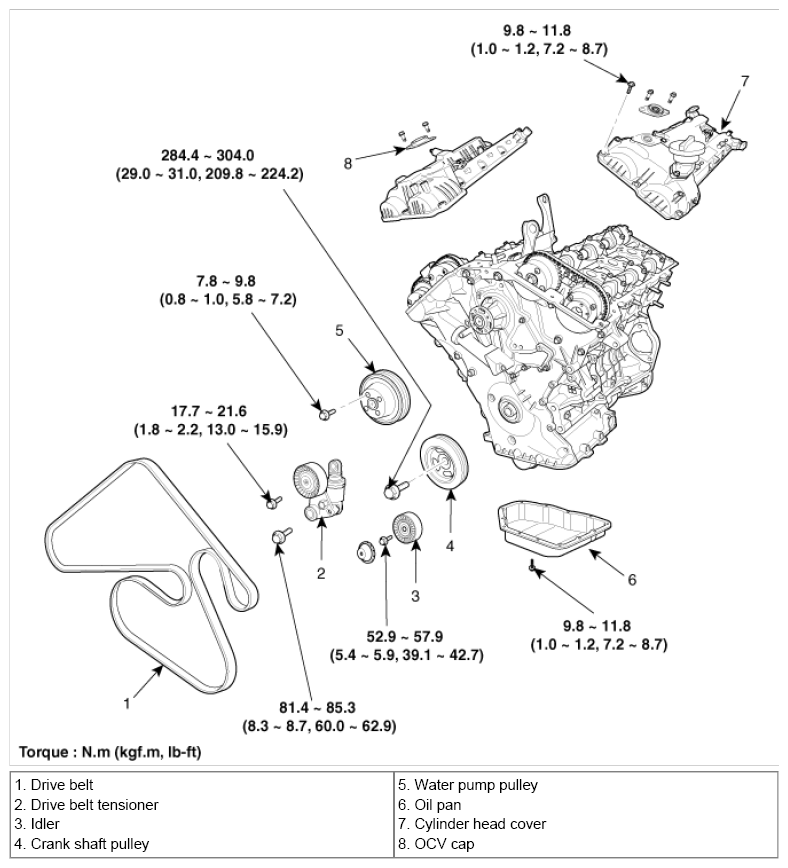

Fig 1: Exploded View Of Timing Chain With Torque Specifications (1 Of 2)
G07416871Courtesy of KIA MOTORS AMERICA, INC.

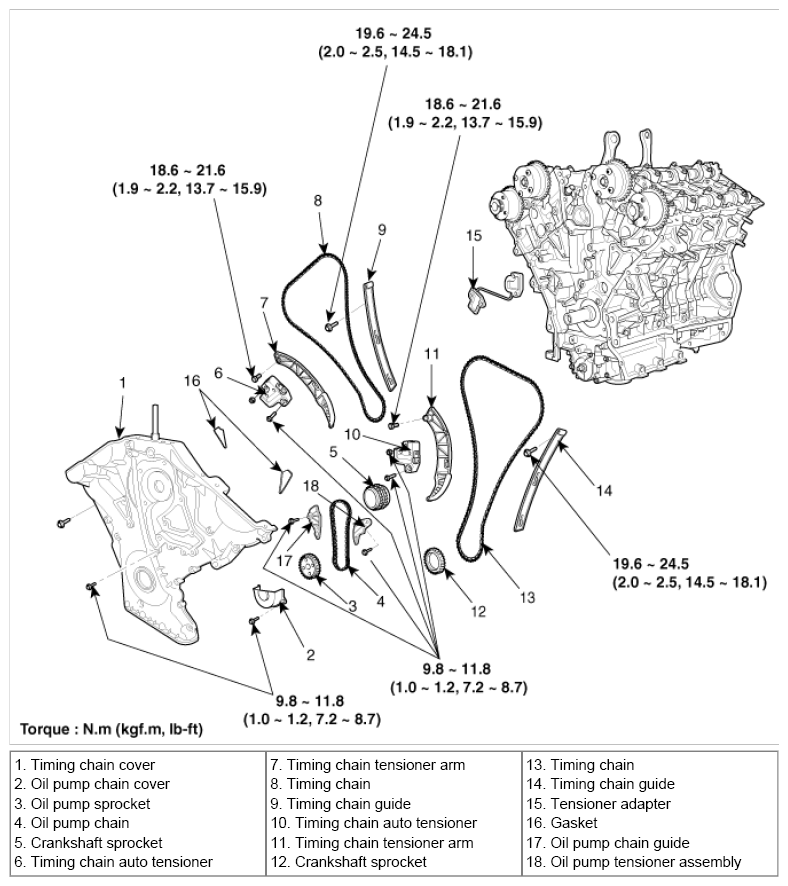

Fig 2: Exploded View Of Timing Chain With Torque Specifications (2 Of 2)
G07416872Courtesy of KIA MOTORS AMERICA, INC.
