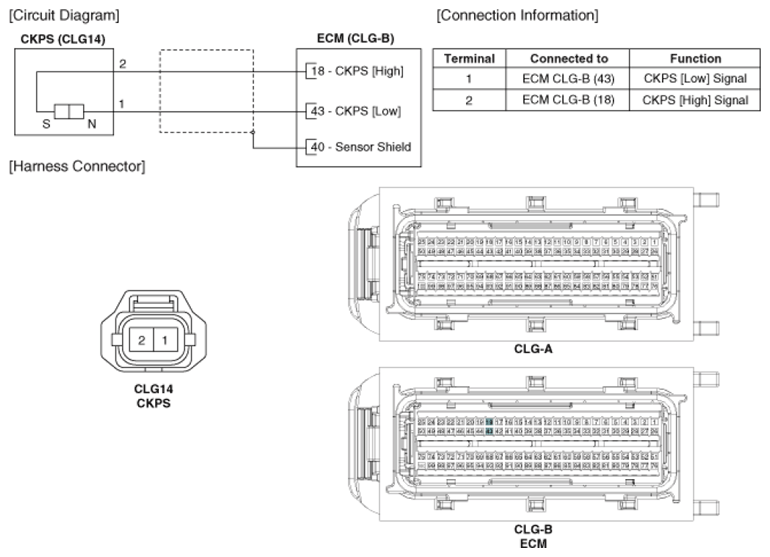

Home › Kia › 2012 › Sorento SX, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.5L › Crankshaft Position Sensor (CKPS) › Schematic Diagrams › Circuit Diagram
