Engine Control System - 3.5L
›
Engine Coolant Temperature Sensor (ECTS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

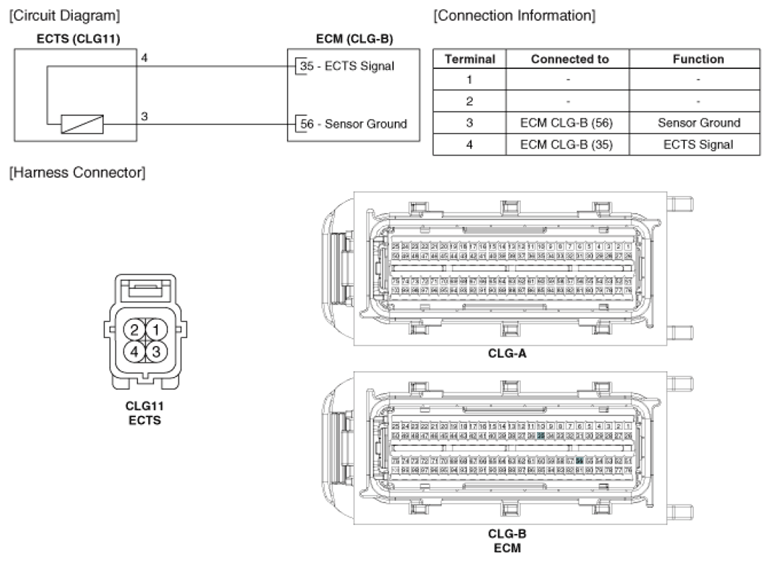

Fig 1: Engine Coolant Temperature Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
