Engine Control System - 3.5L
›
VCM Position Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

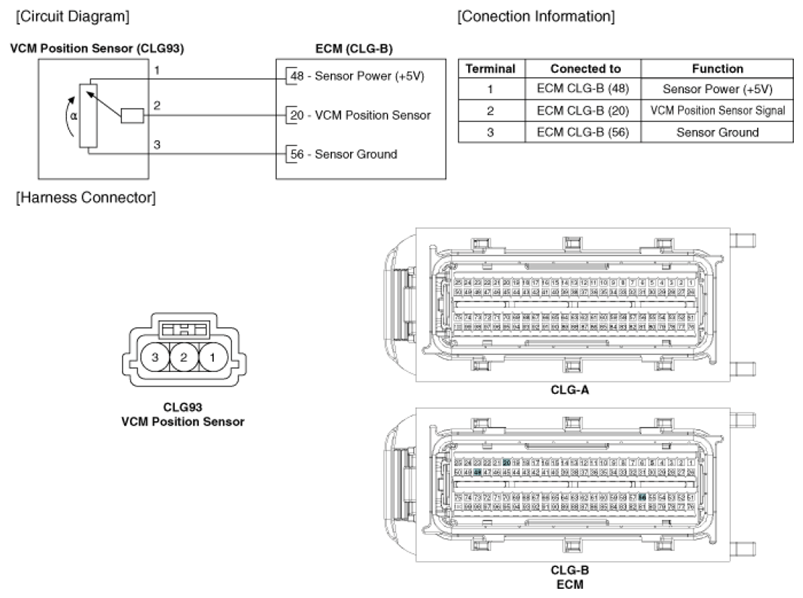

Fig 1: VCM Position Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
