Engine Control System - 2.0L
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
›
(M/T)
Circuit Diagram: (M/T)

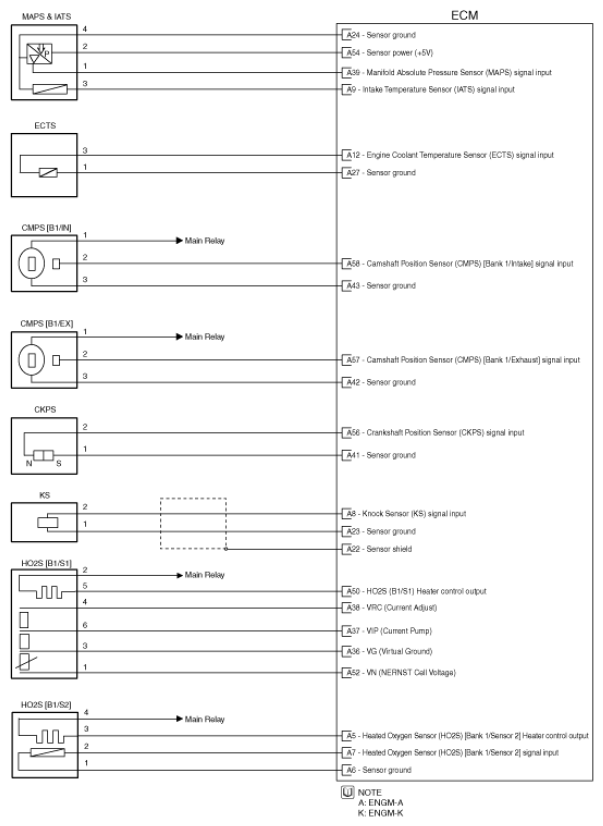

Fig 1: ECM - Circuit Diagram (M/T) (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

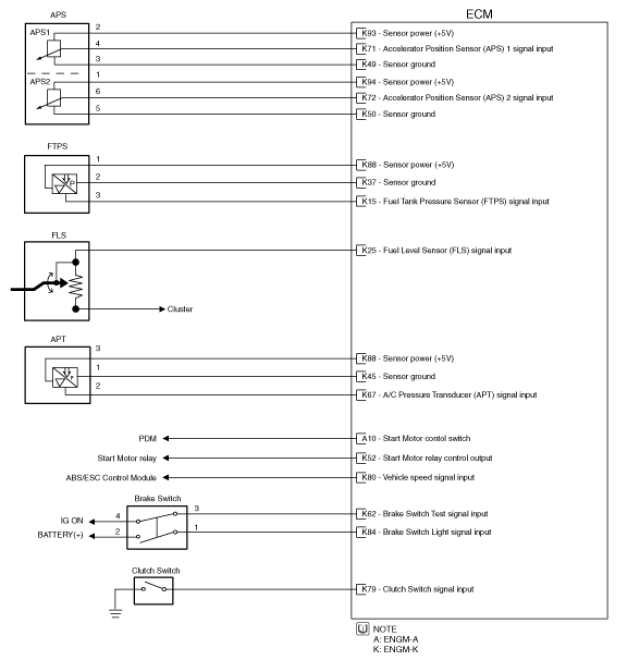

Fig 2: ECM - Circuit Diagram (M/T) (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

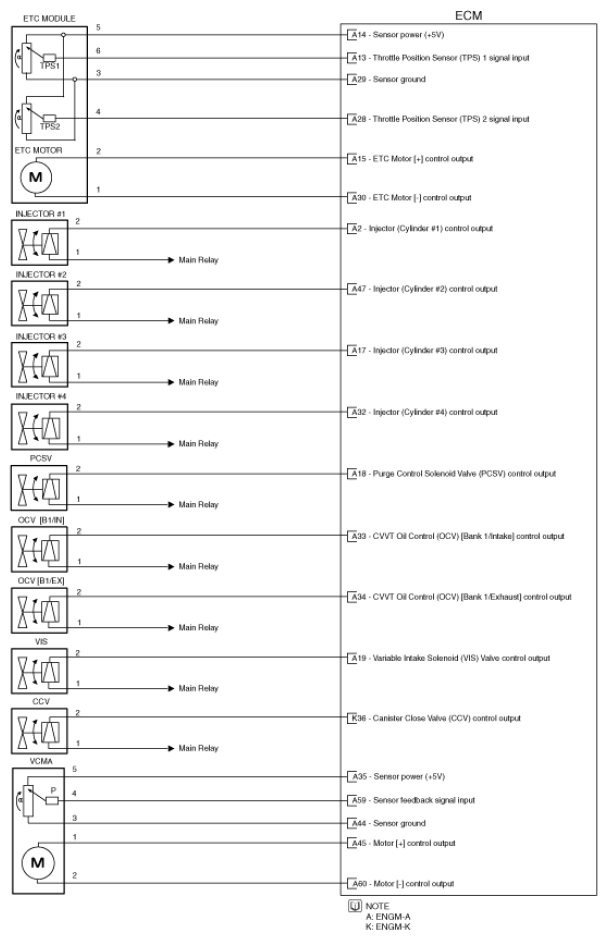

Fig 3: ECM - Circuit Diagram (M/T) (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

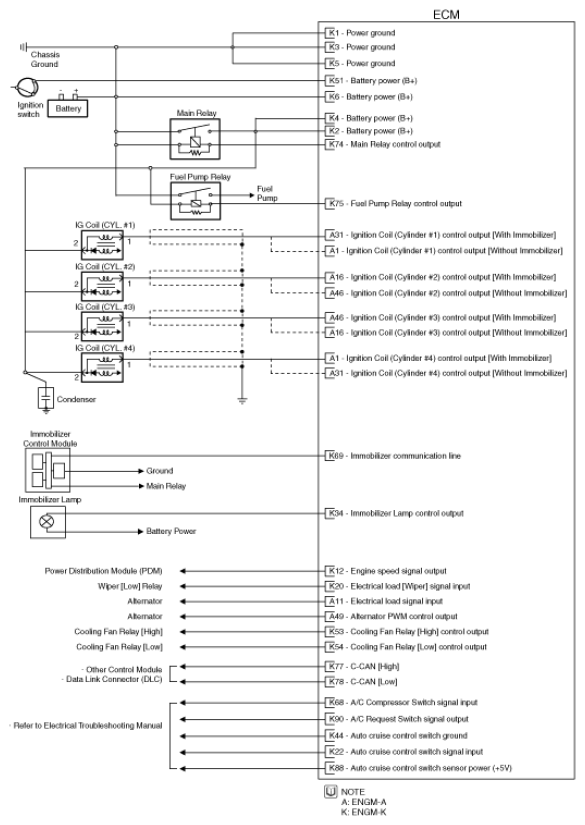

Fig 4: ECM - Circuit Diagram (M/T) (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
