Repair procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.

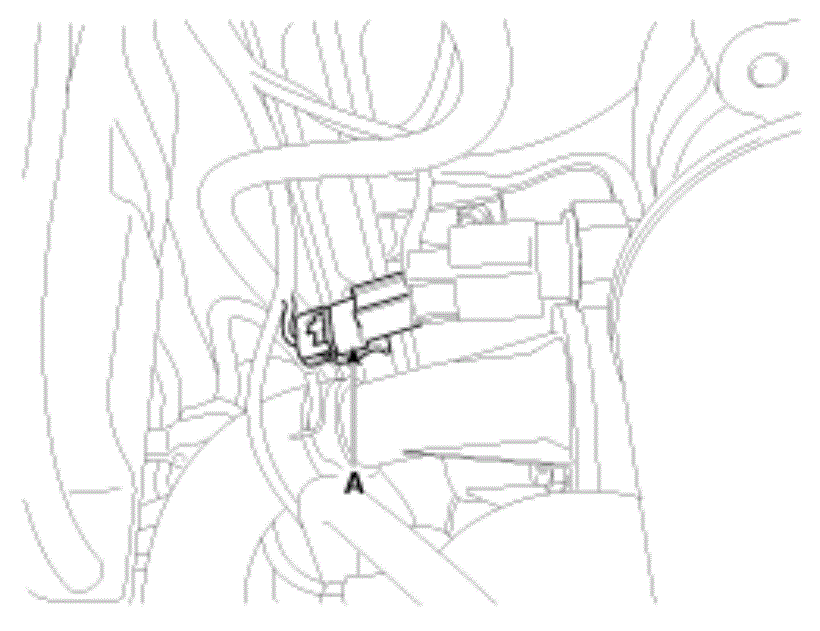

Disconnect the knock sensor connector (A).

Fig 1: Identifying Knock Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake manifold (Refer to REMOVAL AND INSTALLATION .

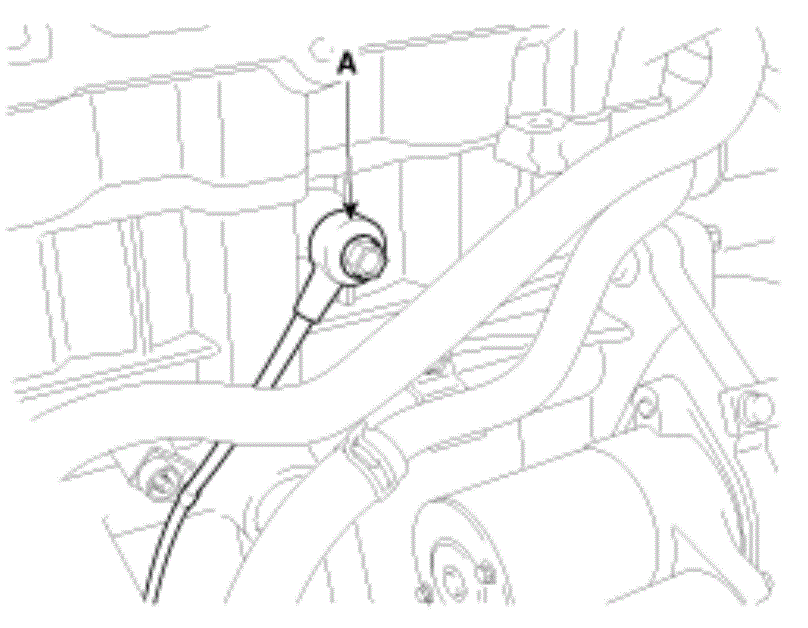

Remove the installation bolt (A), and then remove the sensor from the cylinder block.

Fig 2: Knock Sensor Component Location
Courtesy of KIA MOTORS AMERICA, INC.
