Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the VCMA connector (A).

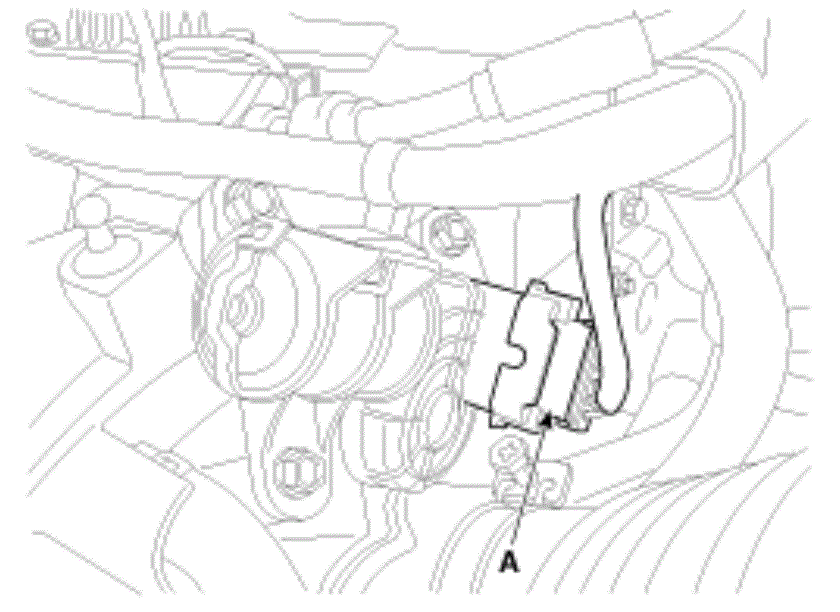

    Fig 1: Identifying VCMA Connector
    G08331103Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the VCMA (A) after removing 3 installation bolts.

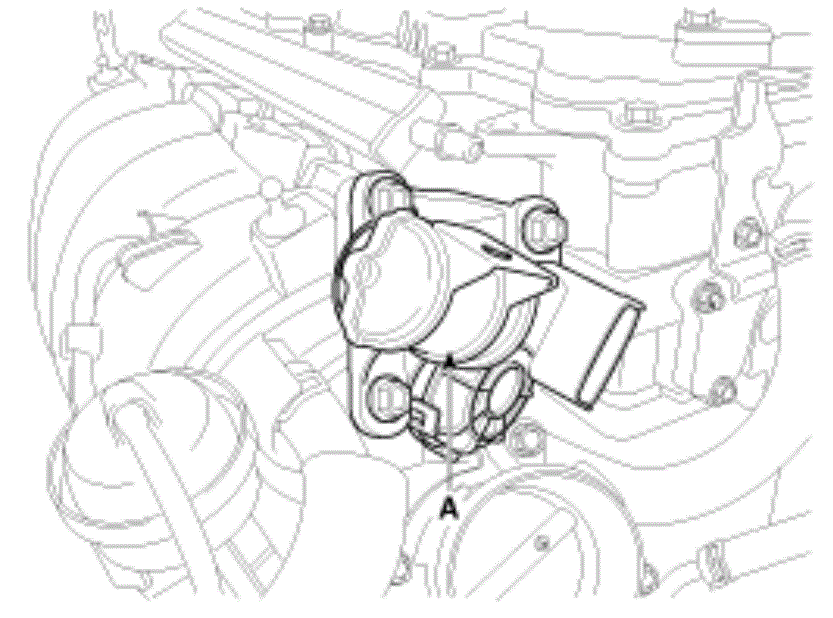

    Fig 2: Variable Charge Motion Actuator (VCMA) Component Location
    G08331104Courtesy of KIA MOTORS AMERICA, INC.
