Automatic Transaxle Control System - 2.0L
›
Inhibitor Switch
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

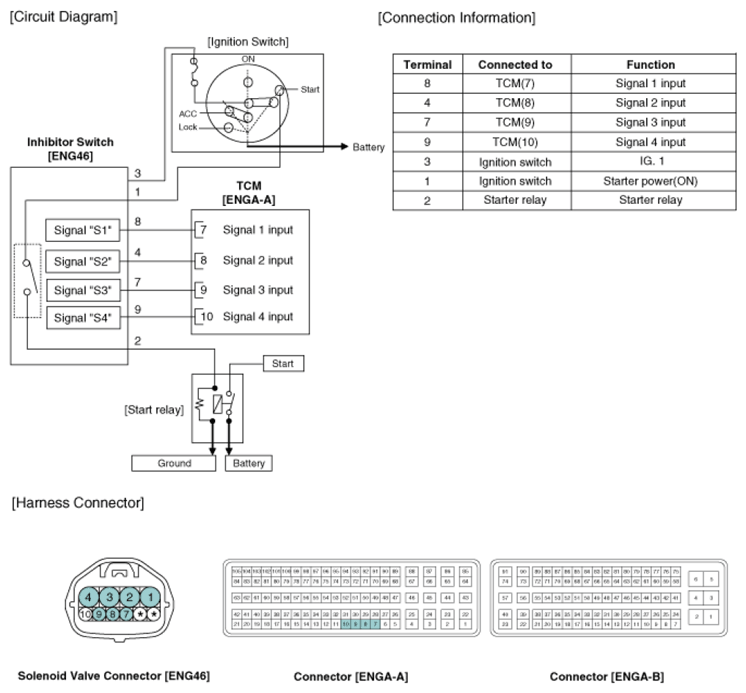

Fig 1: Inhibitor Switch (ENG46) And TCM (ENGA-A) - Circuit Diagram With Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
