Charging System - 1.6L
›
Alternator
›
Components and Components Location
›
Components
Components and Components Location: Components

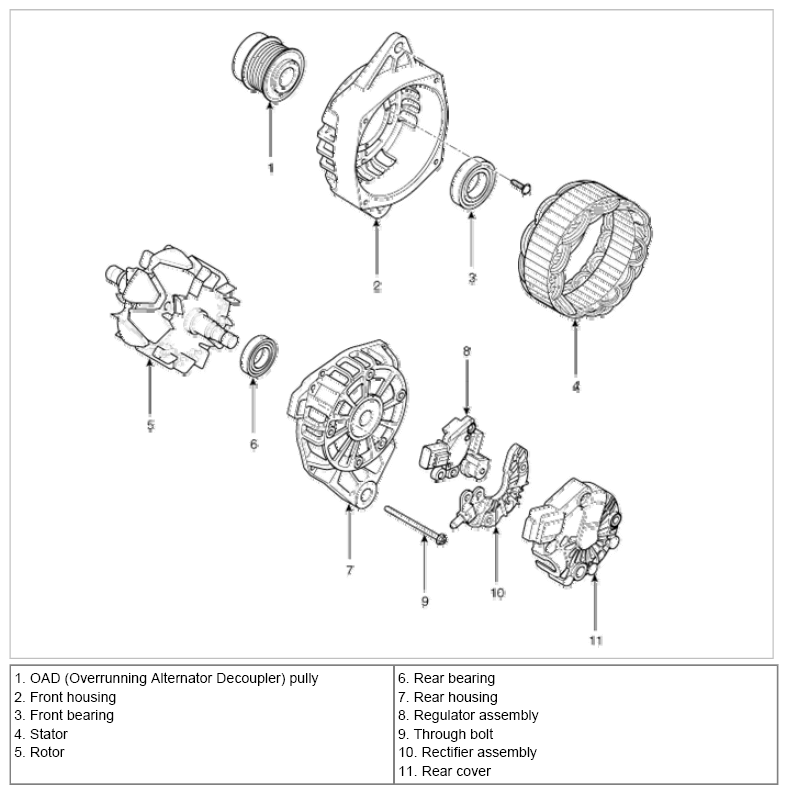

Fig 1: Identifying Alternator Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
