Repair procedures: Removal

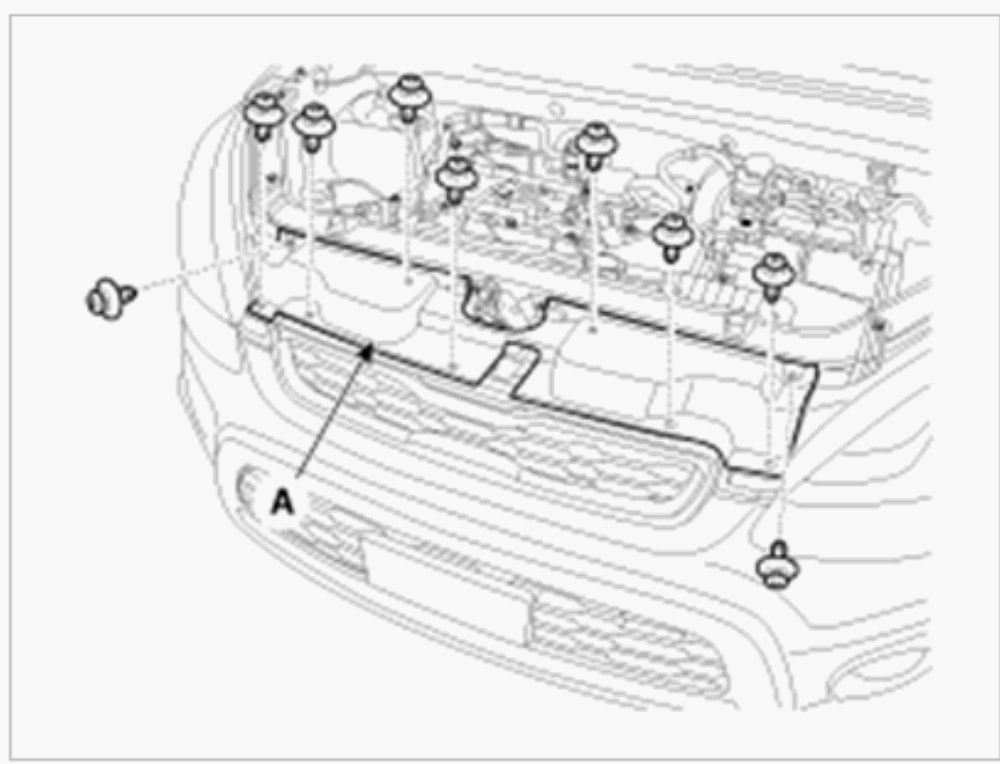

Remove the radiator upper cover(A) after loosening the mounting fasteners.

Fig 1: Removing Radiator Upper Cover
Remove the horn(B) after disconnecting the connector(A) and bolt.

Fig 2: Identifying High Pitch Horn
Courtesy of KIA MOTORS AMERICA, INC.
