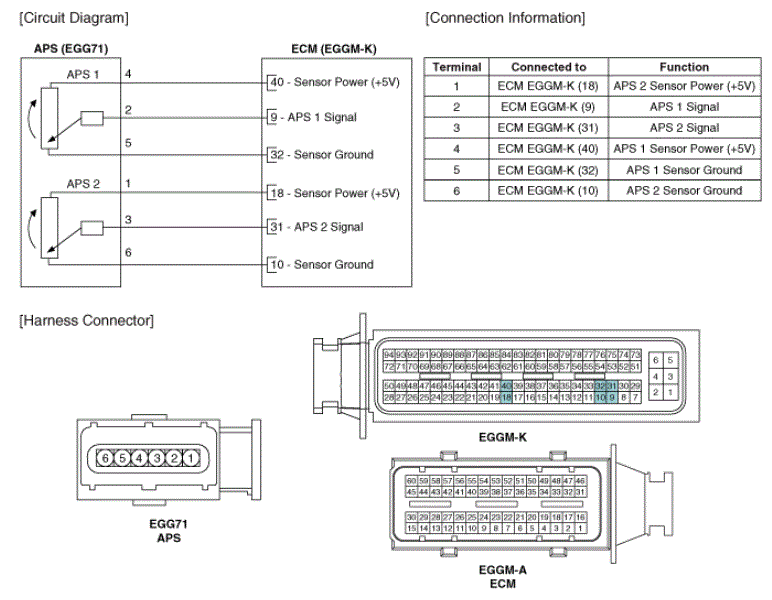

Home › Kia › 2012 › Soul Base, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram › (M/T)
