Kia
›
2012
›
Soul Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L
›
Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Wave Form
Wave Form

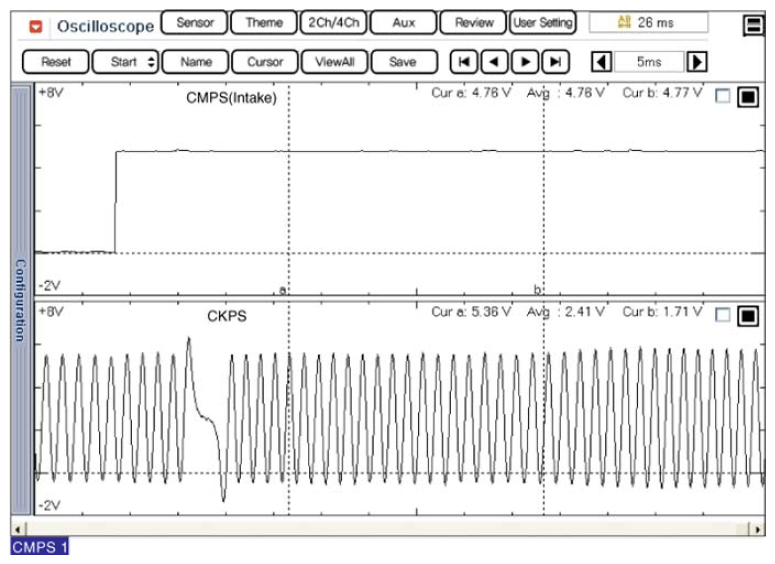

Fig 1: Display - CMPS (Intake) And CKPS Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

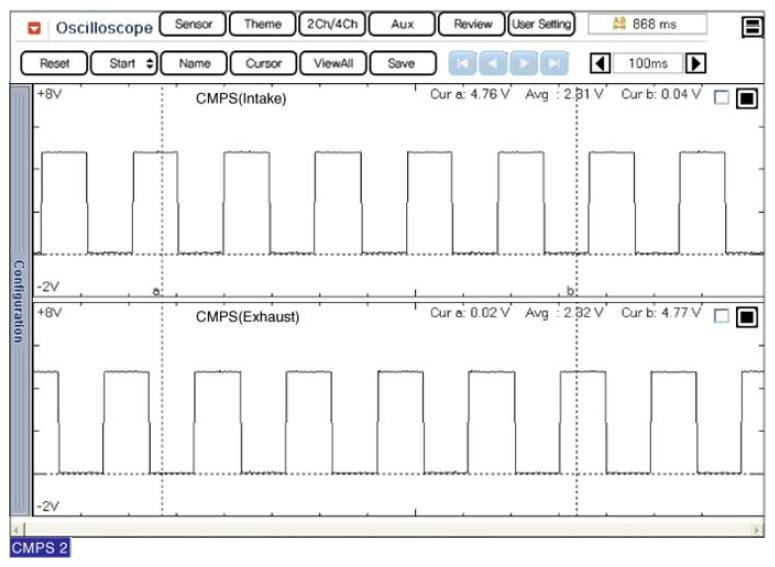

Fig 2: Display - CMPS (Intake And Exhaust) Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
