Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.

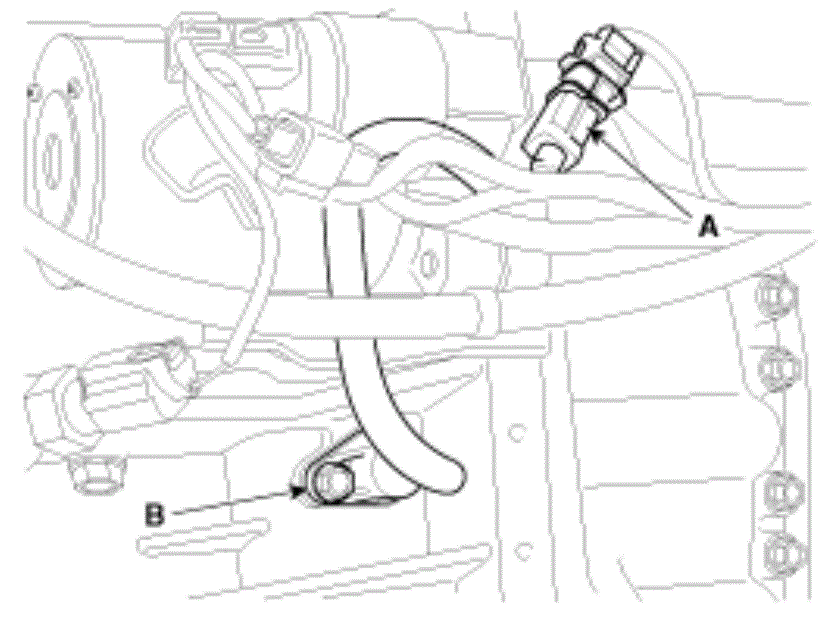

    Fig 1: Crankshaft Position Sensor Component Location
    G08327959Courtesy of KIA MOTORS AMERICA, INC.
