Home › Kia › 2012 › Soul Base, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Engine Coolant Temperature Sensor (ECTS) › Repair procedures › Removal

Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A).

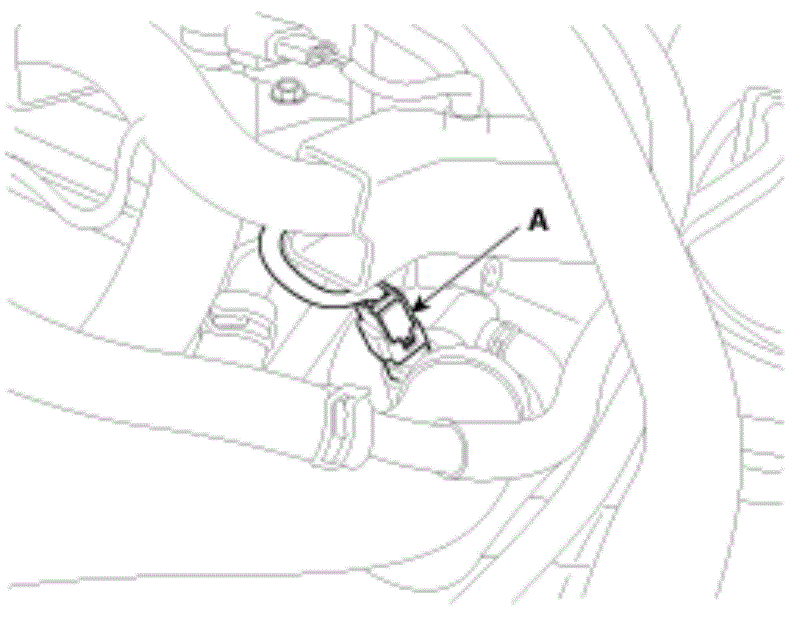

    Fig 1: Engine Coolant Temperature Sensor Component Location
    G08327953Courtesy of KIA MOTORS AMERICA, INC.
  3. Supplement the engine coolant (Refer to REFILLING AND BLEEDING .
