Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.

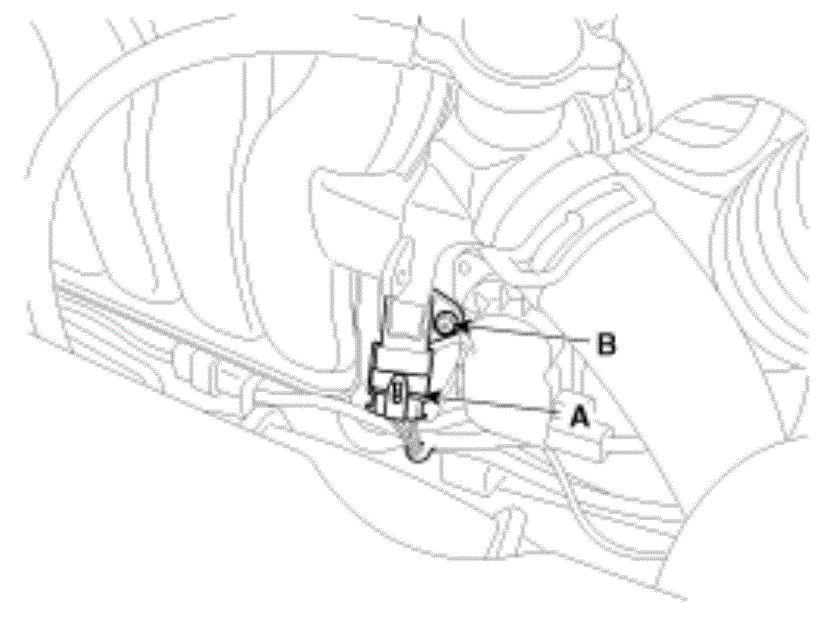

    Fig 1: Manifold Absolute Pressure Sensor Component Location
    G08327946Courtesy of KIA MOTORS AMERICA, INC.
