Repair procedures: Inspection

  1. Disconnect the hood switch connector (A).

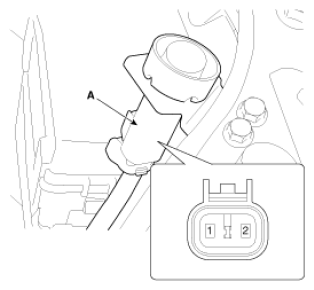

    Fig 1: Identifying Hood Switch Connector
    G08328103Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between terminals
    Fig 2: Hood Switch Connector Continuity Reference Chart
    G08328104Courtesy of KIA MOTORS AMERICA, INC.
