Repair Procedures (F21): Removal

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) terminal from the battery.
Lift up the vehicle.
Remove the front muffler (A). (refer to INTAKE AND EXHAUST SYSTEM )

Fig 1: Identifying Front Muffler
Courtesy of HYUNDAI MOTOR CO.
Disconnect the propeller shaft (A) by removing the three bolts.

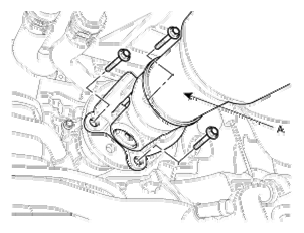

Fig 2: Identifying Propeller Shaft
Courtesy of HYUNDAI MOTOR CO.
Disconnect the right driveshaft from the transfer case. (refer to REMOVAL )
Drain the fluid by removing the oil drain plug (A).

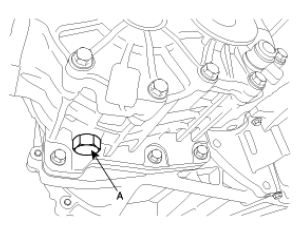

Fig 3: Identifying Oil Drain Plug
Courtesy of HYUNDAI MOTOR CO.
After completing draining the fluid, install the oil drain plug.
Tightening torque:

40-60 N.m (4.0-6.0 kgf.m, 28.9-43.4 lb-ft)
Remove the four mounting bolts (A) of transfer case bracket.

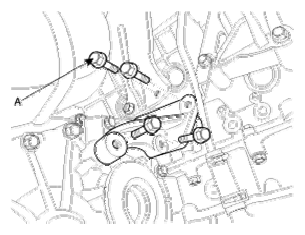

Fig 4: Identifying Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the transfer case assembly by removing the six mounting bolts (A).

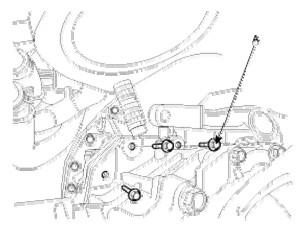

Fig 5: Identifying Transfer Case Assembly Mounting Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 6: Identifying Transfer Case Assembly Mounting Bolts (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
