DATA COLLECTION: EXTRACT CALIFORNIA EMISSIONS DATA FROM ECU (DC003)

TECHNICAL SERVICE BULLETIN

SERVICE INFORMATION

This bulletin provides information related to extracting "In use performance tracking" emissions data from the engine control unit (ECU) in certain vehicles sold in California. The California Air Resources Board (CARB) requires this emissions data to be extracted from the ECUs of a number of customer owned 2012 model year vehicles with a minimum of 3000 accumulated miles without reprogramming or resetting. To facilitate collection of this data at the dealer level, GDS screen shots will allow the capture of relevant parameters.

For vehicles listed on DCS as requiring this procedure  , follow the instructions in this bulletin after confirming that the following criteria are met:

• WebDCS shows this as an open Data Collection code DC003A→T (depending on model) for the vehicle.
  NOTE: Note that as sufficient data is collected, individual line items per model may be closed without updates to the TSB. Once a line item is closed on DCS, no further data collection is required. Data collections initiated after a line item is closed are subject to chargeback  .
• Vehicle has more than  3000 miles on its odometer.
• Vehicle repair history does not show battery replacement/disconnection/reset or an ECU Update done in the last 3000 miles, because IUMPR (In Use Monitor Performance Ratio) data would have been cleared by such an event.
• Vehicle does not have a check engine light ON.

SERVICE PROCEDURE

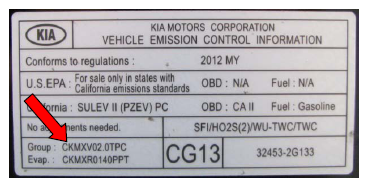

1. Open the engine compartment and locate the emission label under the hood. Locate and write down the "Group"  number found on the label for later form entry.

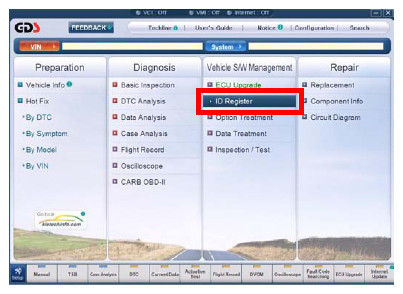

2. To start, use the Global Diagnostic System (GDS). Begin by clicking on "ID Register."  Click on "Auto VIN"  or manually enter vehicle information on the next screen.
   NOTE: GDS must be updated to version N-K-01-07-0010 or later to properly collect data!

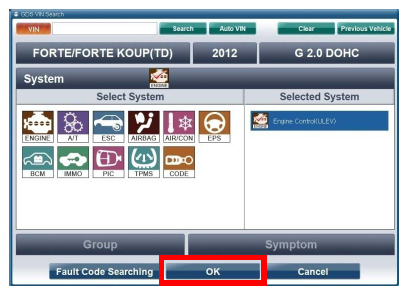

3. Choose "Engine"  under "Select System."  Click "OK"  and follow screen instructions for connecting to vehicle.
   NOTE: Screens shown in this bulletin are for demonstrative purposes only and will vary depending on the vehicle.

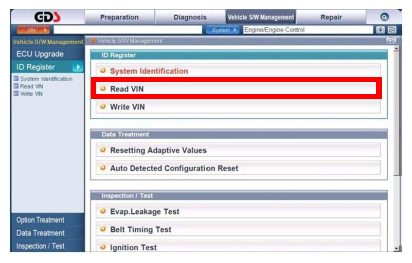

4. To verify the VIN, select "Read VIN"  under the "Vehicle S/W Management"  menu. Click "OK" and write down the VIN for later form entry.

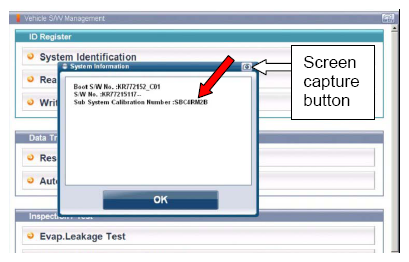

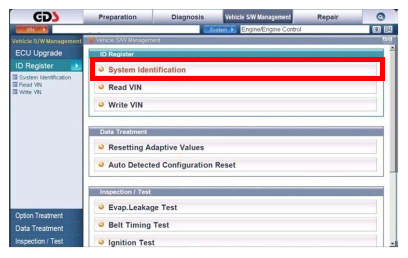

1. 5a. Select "System Identification".
2. 5b. Do a screen capture of "Calibration ID"  or "ROM ID"  number for later form entry.

   Select "Scantool Area - Full"  and click "Send to file."  The GDS will set up a designation folder and file name to save the captured data. Please change the file name to include the model/engine, the last 6 of the VIN and the date (mmddyyyy). Before saving, write down the file name and designation folder for further reference.

   Example:  KM20L_703429_12142012

   (Model & Eng.) (VIN) (mmddyyyy)

   Next, go to the main screen by clicking on the "GDS"  logo at the top left of the screen.

   NOTE: Before saving, write down the Calibration Number (indicated by red arrow) for further reference.

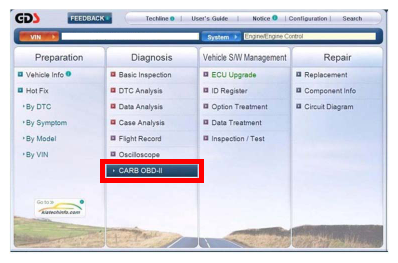

3. 6. Then select "CARB OBD-II"  under the "Diagnosis"  tab.

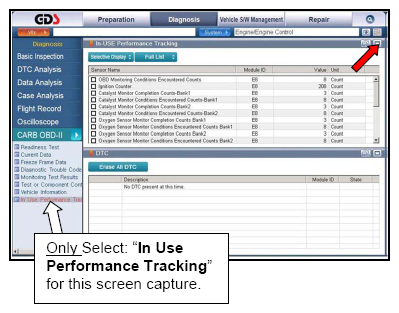

4. 7. Click on "IN-USE Performance Tracking"  found in the CARB OBD-II list at the bottom left of the screen. Then click the "Expand"  button at the top right corner of "IN-USE Performance Tracking"  window.
   NOTE: If all values indicate "Not Supported" or "0", check to make sure you have GDS software version N-K-01-07-0010 or later. If the software version is correct, and all values show "Not Supported" or "0", the vehicle will not qualify for this data collection, as it may have received a recent ECM Update or battery replacement/reset of the data values.

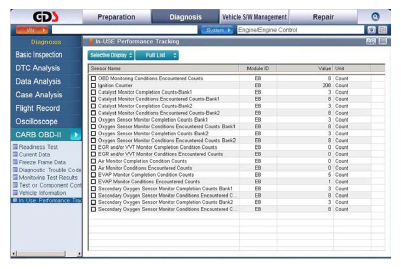

5. 8. To capture the GDS data, click on the "Capture"  button.
   NOTE: Make sure you capture the entire screen, if only part of the list is displayed, first click "Expand" button, then proceed to capture the entire screen.

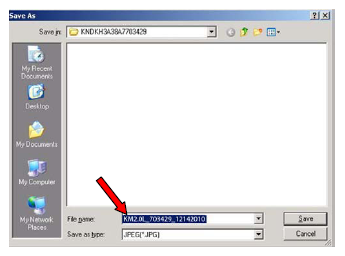

6. 9. Select "Scantool Area - Full"  and click "Send to file."  The GDS will set up a designation folder and file name to save the captured data. Please change the file name to include the model/engine, the last 6 of the VIN and the date (mmddyyyy). Before saving, write down the file name and designation folder for further reference.

   Example:  KM20L_703429_12142012

   **(Model & Eng.) (VIN) (mmddyyyy)

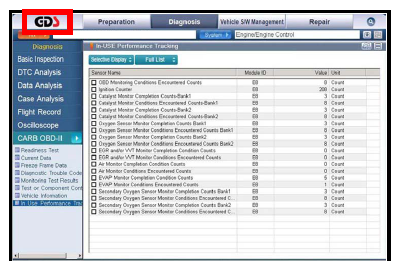

7. 10. After saving the file, return to the GDS home page by clicking on "GDS"  logo in the upper left hand corner.

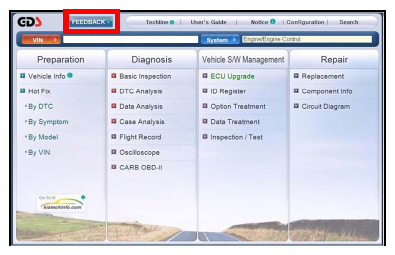

8. 11. Then click on the "Feedback"  button.

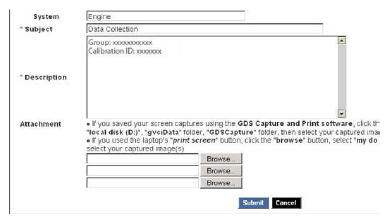

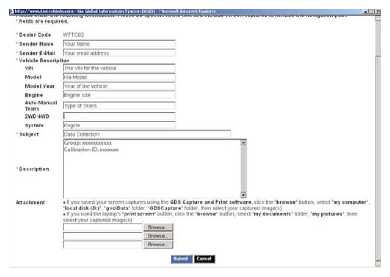

9. 12. Enter all the information requested in the form including your name and email address.
   • For System, enter "Engine".
   • For Subject, enter "Data Collection".
   • In the Description area,
     • Type "Group:"  followed by the group number from the Vehicle Emission Control Information label in step 1.
     • Type "Calibration ID:"  followed by the calibration ID obtained in step 5b.
     • Add current odometer mileage.
     • Add RO#.
   NOTE: Please check to ensure both group and Cal ID numbers are correctly entered.
10. 13. To attach the data to the feedback form, click on the "Browse"  button.

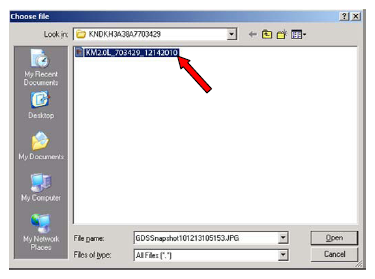

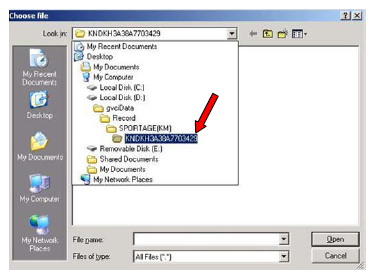

11. 14. Refer to the file name and destination from step 9.
    • Navigate to: Local Disk (D:)/gvciData/Record/
    • Click on the folder for the vehicle i.e., "Sportage (SL)".
    • Click on the folder containing the vehicle VIN.
    • Click on the file name.
    • Once the file name appears in the "File Name"  box, click on the "Open"  button. Once file name appears in attachment field, repeat and attach screen capture of "Calibration ID"  or "ROM ID"  number from step 5b.
    NOTE: Ensure that you attach the correct files by confirming  they are the same as it is written down in step 5 & 9. Incorrect attachments render data submissions useless and are subject to a charge back of the warranty claim.

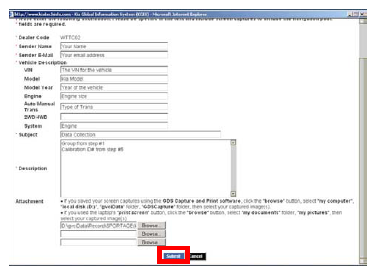

12. 15. When the file name appears in the attachment field and all the information has been entered, click the "Submit"  button.
    NOTE: GDS must be connected to the internet to submit data.

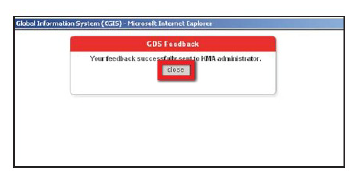

13. 16. Click on the "Close"  button to finish.
    NOTE: You may also print the data prior to submitting as record to attach to the RO.

AFFECTED PRODUCTION RANGE

Model	Production Range
All Models	2012MY

2012MY DATA COLLECTION WARRANTY CLAIM INFORMATION

To ensure proper claim processing, enter VIN in DCS and allow the system to auto populate claim fields.

Campaign ID	Claim Type	Causal P/N	Qty	N Code	C Code	Repair Description	Labor Op Code	Time	Replacement P/N	Qty
DC003A	V	100CA EM999	0	N99	C99	Extract ECU data: Sedona 3.5L	12HCARQA	0.3 M/H	N/A	0
DC003B	V	100CA EM999	0	N99	C99	Extract ECU data: Rio1.6L	12HCARQB	0.3 M/H	N/A	0
DC003C	V	100CA EM999	0	N99	N99	Extract ECU data: Sportage 2.4 SULEV	2HCARQC	0.3 M/H	N/A	0
DC003D	V	100CA EM999	0	N99	C99	Extract ECU data: Sportage 2.4 ULEV	12HCARQD	0.3 M/H	N/A	0
DC003E	V	100CA EM999	0	N99	C99	Extract ECU data: Soul 1.6L	12HCARQE	0.3 M/H	N/A	0
DC003F	V	100CA EM999	0	N99	C99	Extract ECU data: Soul 2.0L	12HCARQF	0.3 M/H	N/A	0
DC003G	V	100CA EM999	0	N99	C99	Extract ECU data: Forte 2.0L SULEV	12HCARQG	0.3 M/H	N/A	0
DC003H	V	100CA EM999	0	N99	C99	Extract ECU data: Forte 2.4L SULEV	12HCARQH	0.3 M/H	N/A	0
DC003I	V	100CA EM999	0	N99	C99	Extract ECU data: Forte 2.0L ULEV	12HCARQI	0.3 M/H	N/A	0
DC003J	V	100CA EM999	0	N99	C99	Extract ECU data: Forte2.4L ULEV	12HCARQJ	0.3 M/H	N/A	0
DC003K	V	100CA EM999	0	N99	C99	Extract ECU data: Optima 2.4L SULEV	12HCARQK	0.3 M/H	N/A	0
DC003L	V	100CA EM999	0	N99	C99	Extract ECU data: Optima2.40L ULEV	12HCARQL	0.3 M/H	N/A	0
DC003M	V	100CA EM999	0	N99	C99	Extract ECU data: Optima 2.0L TURBO	12HCARQM	0.3 M/H	N/A	0
DC003N	V	100CA EM999	0	N99	C99	Extract ECU data: Optima 2.4L HEV	12HCARQN	0.3 M/H	N/A	0
DC003Q	V	100CA EM999	0	N99	C99	Extract ECU data: Sportage 2.0L Turbo	12HCARQQ	0.3 M/H	N/A	0
DC003R	V	100CA EM999	0	N99	C99	Extract ECU data: Sorento 2.4L	12HCARQR	0.3 M/H	N/A	0
DC003S	V	100CA EM999	0	N99	C99	Extract ECU data: Sorento 2.4L GDI	12HCARQS	0.3 M/H	N/A	0
DC003T	V	100CA EM999	0	N99	C99	Extract ECU data: Sorento 3.5L	12HCARQT	0.3 M/H	N/A	0
