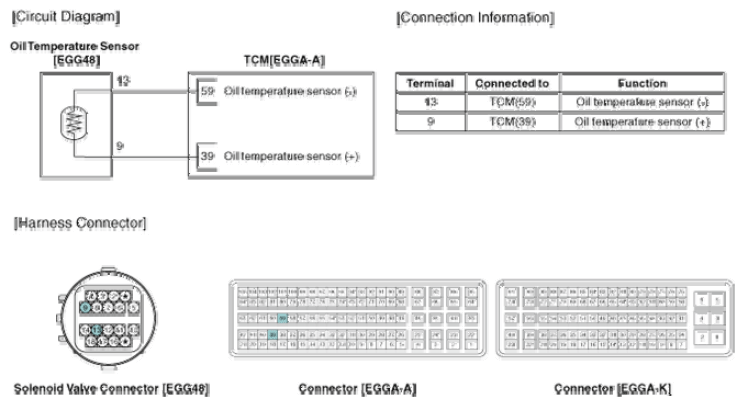

Home › Kia › 2012 › Soul Base, Automatic › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 1.6L › Components and Components Location › Transaxle Oil Temperature Sensor › Schematic Diagrams › Circuit Diagram
