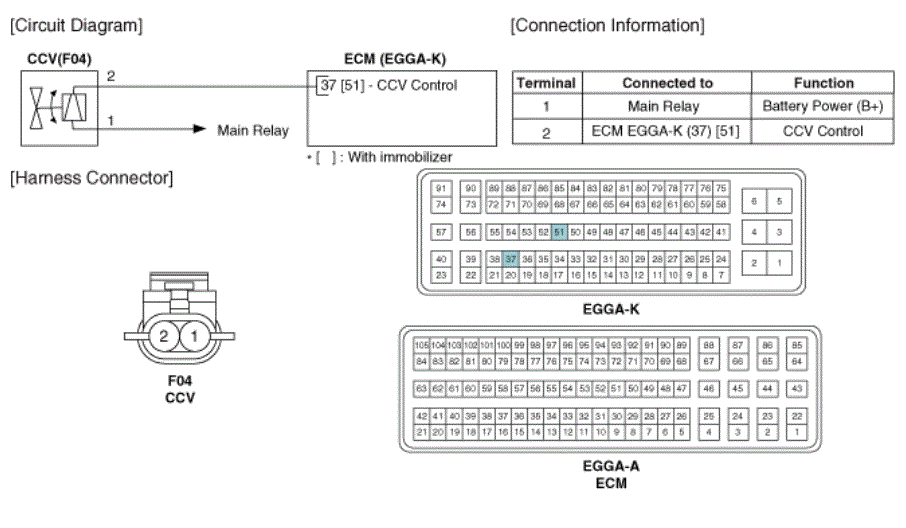

Home › Kia › 2012 › Soul Base, Standard › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Canister Close Valve (CCV) › Schematic Diagrams › Circuit Diagram › (A/T)
