Circuit Diagram: (A/T)

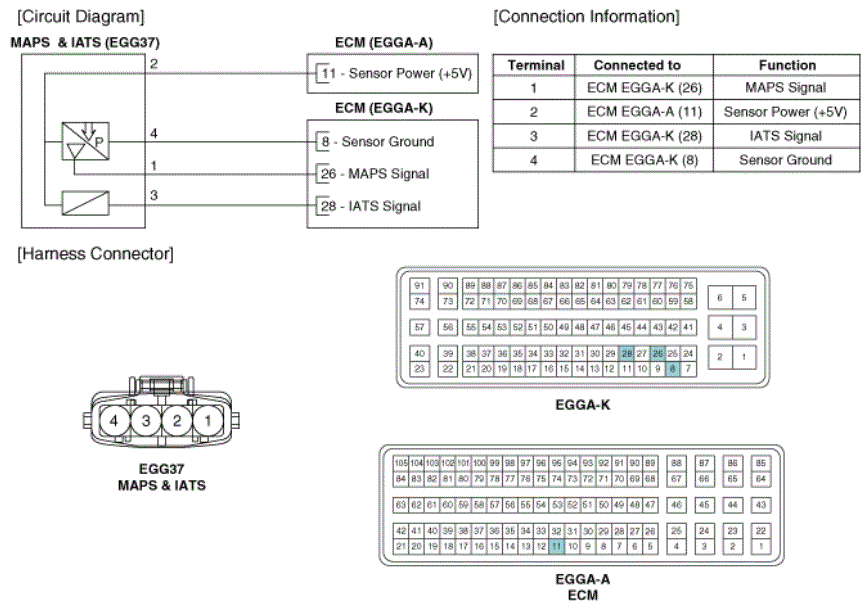

Fig 1: Manifold Absolute Pressure Sensor - Circuit Diagram (A/T)
G08327945Courtesy of KIA MOTORS AMERICA, INC.
