Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering column upper and lower shrouds (A) after removing 3 screws.

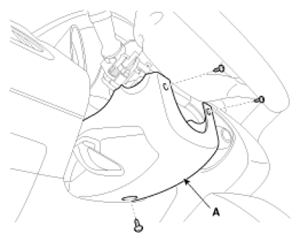

Fig 1: Identifying Steering Column Upper & Lower Shrouds
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Take care not to damage and scratch the shrouds and its related parts.
Take care not to damage the hook when removing the upper and lower shrouds.
Disconnect the light switch connector (A) and the wiper switch connector (B).

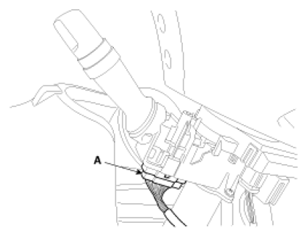

Fig 2: Identifying Light Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

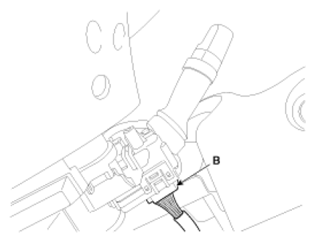

Fig 3: Identifying Wiper Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiper switch (A) by pushing the lock pin (B).
NOTE: When removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.

Fig 4: Identifying Wiper Switch & Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel.
Refer to "STEERING COLUMN AND SHAFT ".
Remove the clock spring.
Refer to "AIRBAG MODULE ".
Remove the multifunction switch assembly (A) after loosening screws (2 EA).

Fig 5: Identifying Multifunction Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
