Repair Procedures: Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cowl top cover.
Refer to COWL TOP COVER .
Disconnect the windshield deicer connector (A) from the wiper motor linkage.

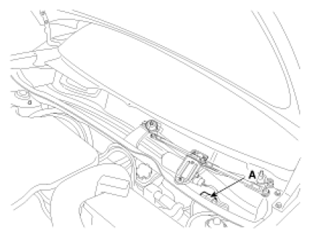

Fig 1: Identifying Windshield Deicer Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals of deicer lines.

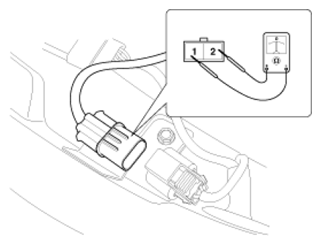

Fig 2: Checking Continuity Between Terminals Of Deicer Lines
Courtesy of KIA MOTORS AMERICA, INC.
Turn the ignition switch ON and the windshield deicer switch ON, then measure the voltage between the terminals of harness side deicer connector.

OK: Approx. Battery voltage (12V)

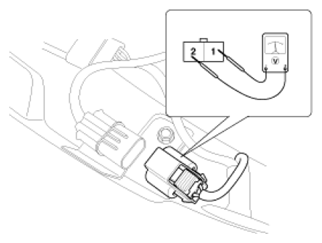

Fig 3: Measuring Voltage Between Terminals Of Harness Side Deicer Connector

Courtesy of KIA MOTORS AMERICA, INC.
