Automatic Transaxle Control System
›
Input Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform
Fig 1: Display Signal Waveform Of Input/Output Speed Sensor At Low Speed
Courtesy of KIA MOTORS AMERICA, INC.

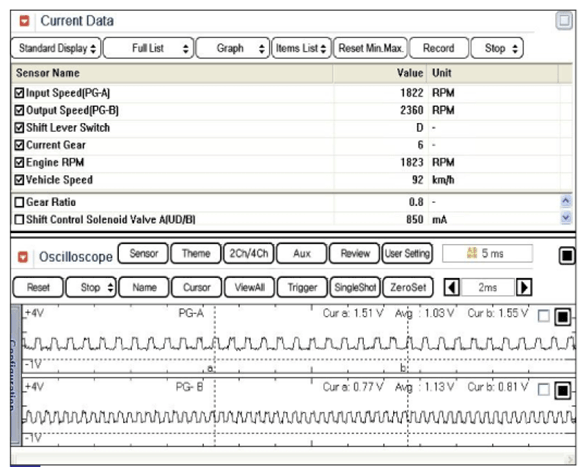

Fig 2: Display Signal Waveform Of Input/Output Speed Sensor At High Speed
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
