Emission Control System - General Information
›
Schematic Diagram
Schematic Diagram

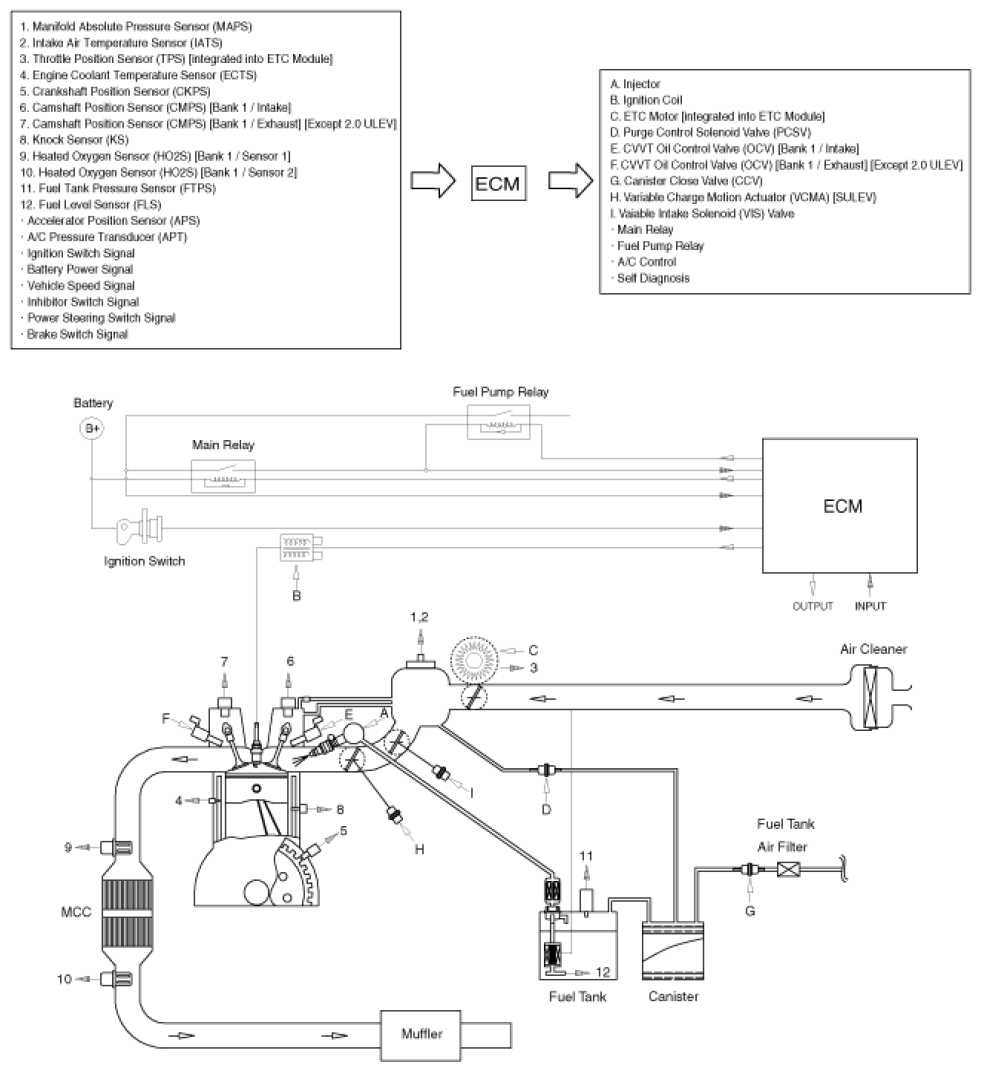

Fig 1: Emission Control System Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
