Circuit Diagram
Circuit Diagram

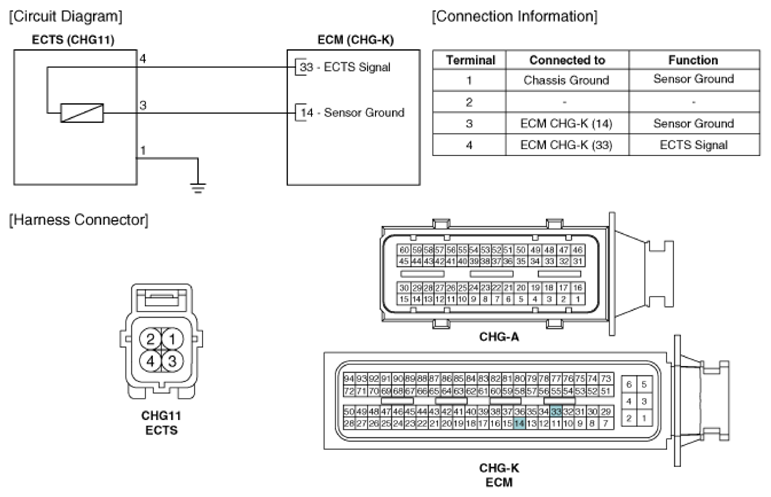

Fig 1: ECTS (CHG11) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
