Electric WGT Control Actuator
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

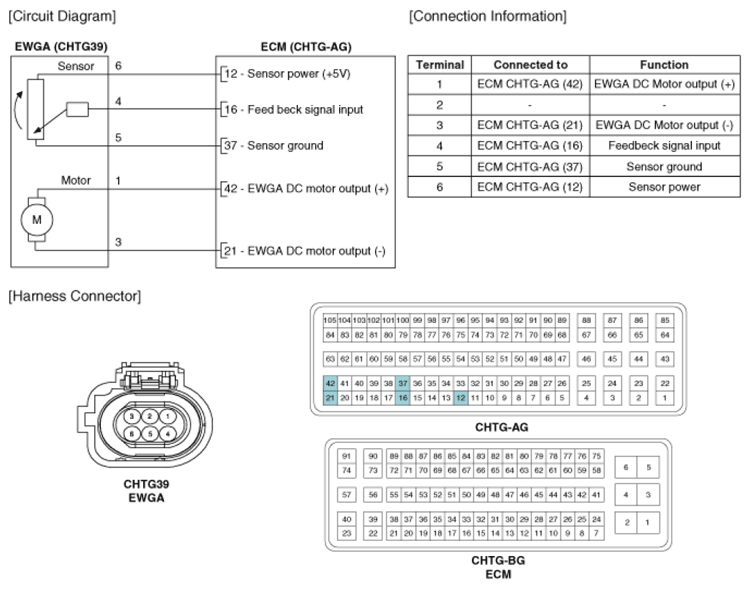

Fig 1: EWGA Position Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
