Components and Components Location: Components

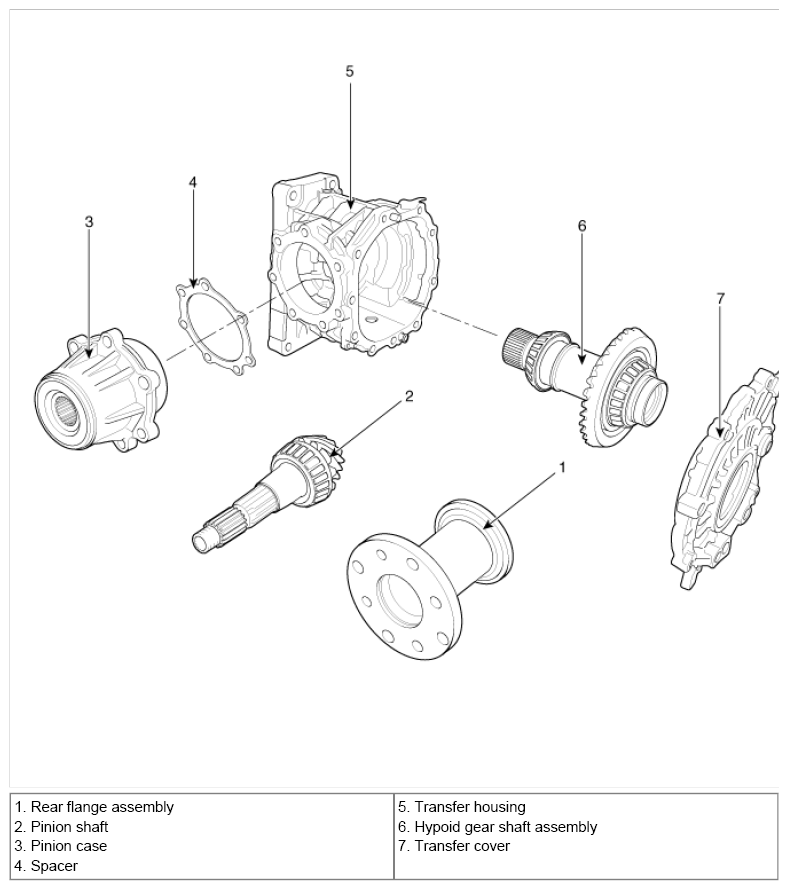

Fig 1: Exploded View Of Transfer Assembly
G07419781Courtesy of KIA MOTORS AMERICA, INC.
