(Bank 1 / Intake)

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (B) after removing the clip (A).
  3. Remove the installation bolt (C), and then remove the sensor.

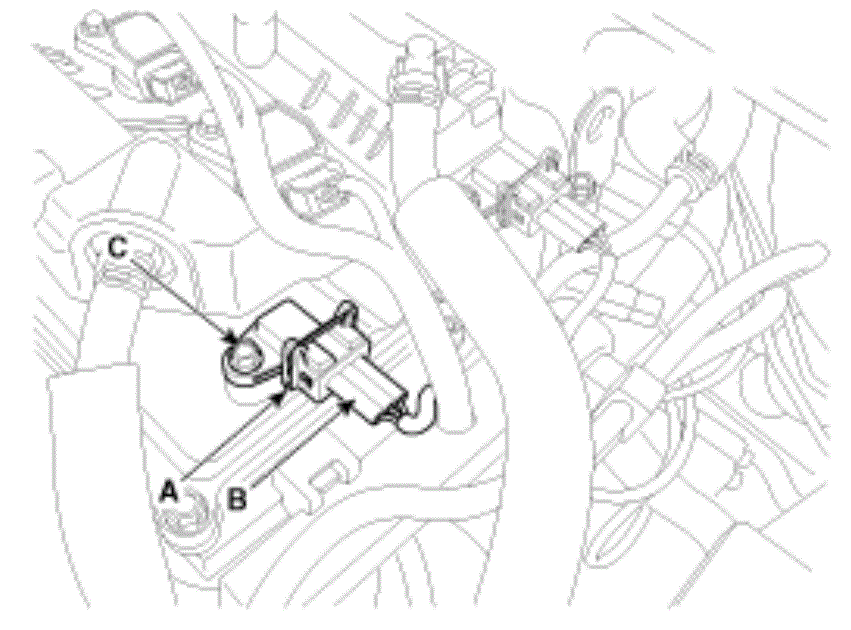

    Fig 1: Camshaft Position Sensor Connector, Clip And Bolt (Bank 1/Intake) Component Location
    G08331050Courtesy of KIA MOTORS AMERICA, INC.
