Power Window Main Switch

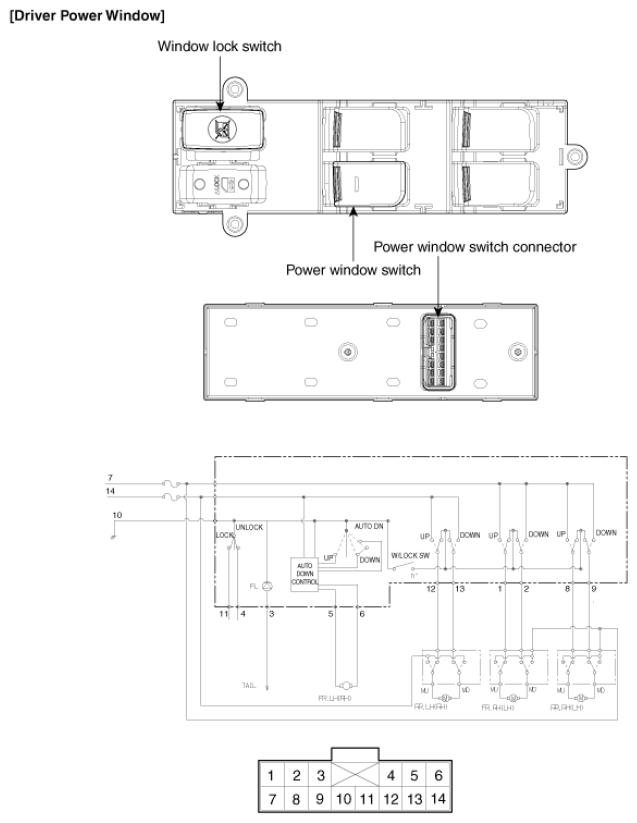

Fig 1: Identifying Power Window Main Switch Terminals (Driver Power Window)
G08329268Courtesy of KIA MOTORS AMERICA, INC.

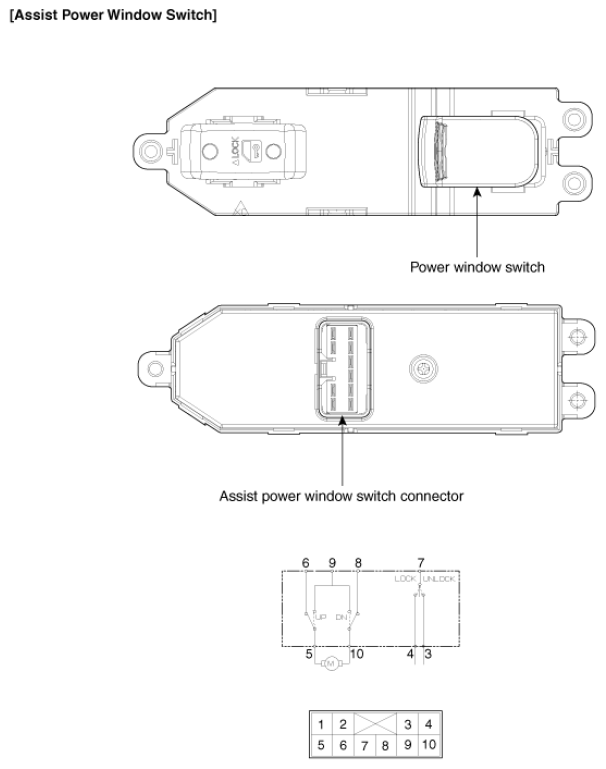

Fig 2: Identifying Power Window Main Switch Terminals (Assist Power Window Switch)
G08329269Courtesy of KIA MOTORS AMERICA, INC.
