Components and Components Location: Components

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

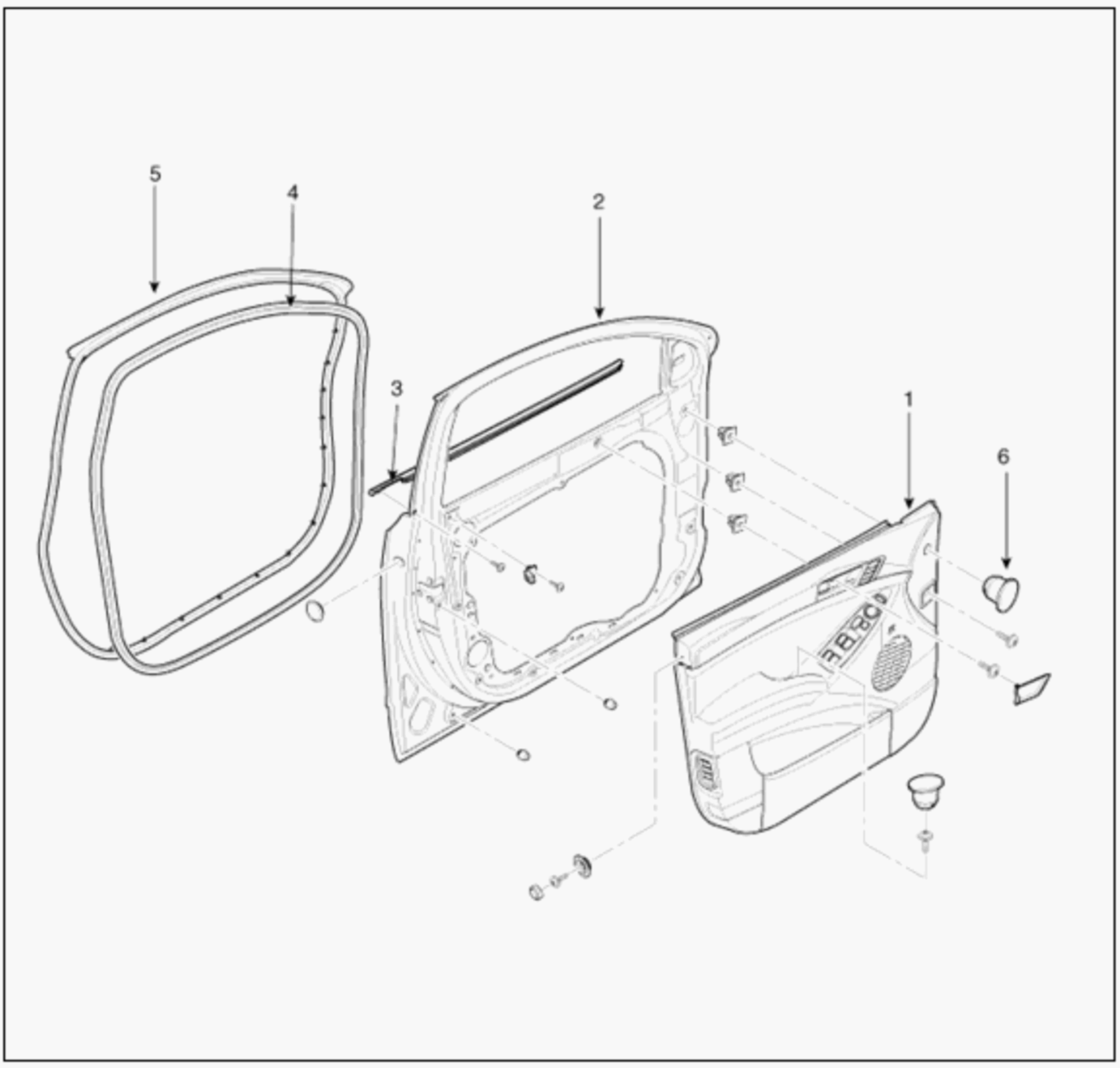

Fig 1: Identifying Front Door External Components
G00517319Courtesy of HYUNDAI MOTOR CO.
  1. Door trim
  2. Door trim 2. Door panel
  3. Door belt weatherstrip
  4. Body weatherstrip
  5. Door weatherstrip
  6. Cap

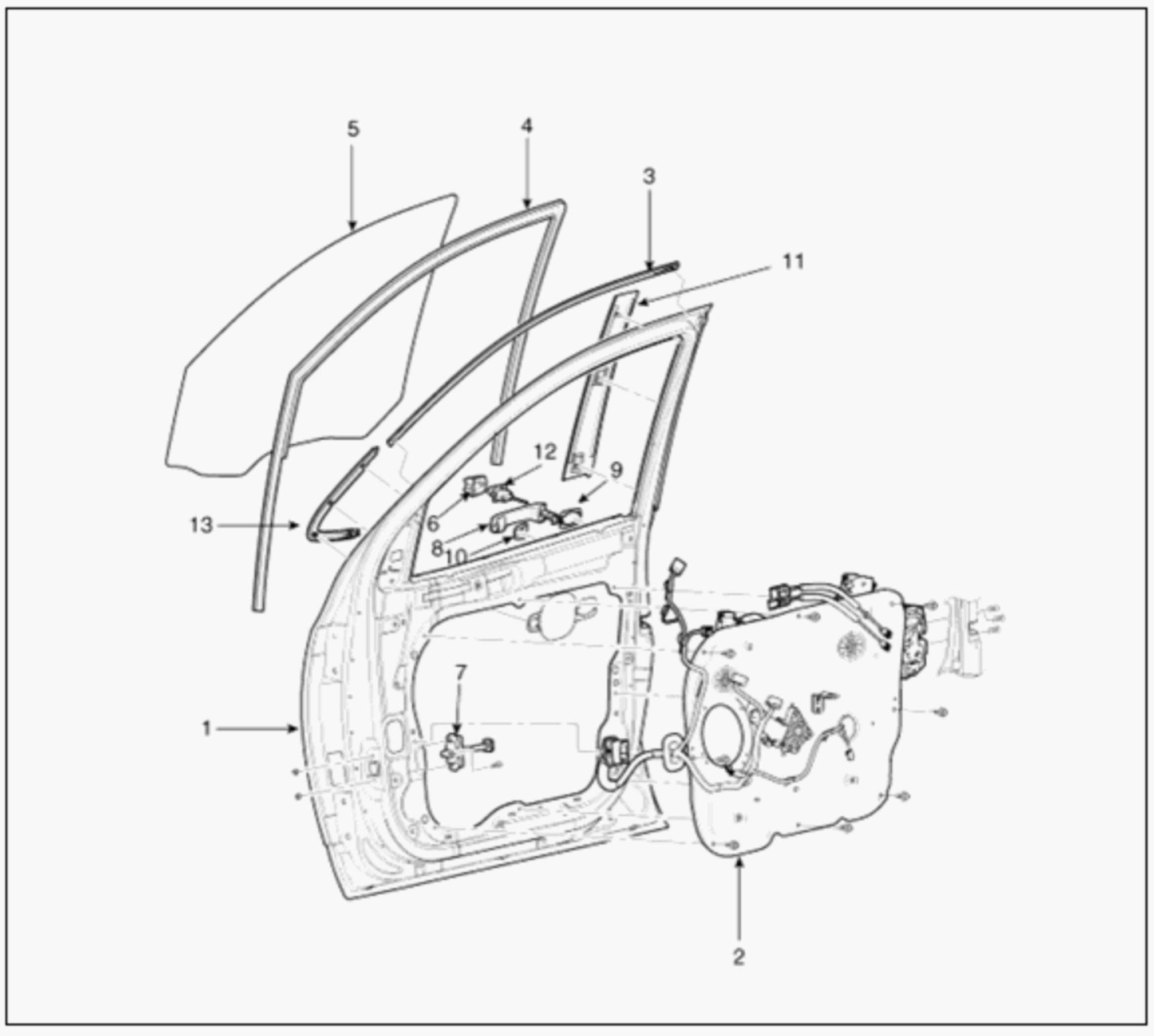

Fig 2: Identifying Front Door Internal Components
G00517320Courtesy of HYUNDAI MOTOR CO.
  1. Door panel
  2. Door module
  3. Door frame molding
  4. Glass run
  5. Glass
  6. Out side handle cover
  7. Door checker
  8. Out side handle
  9. Rear outside handle pad
  10. Front outside handle pad
  11. Door frame garnish
  12. Door lock
  13. Quadrant frame molding
