Door Module Assembly Replacement

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts.
    1. Door trim.
    2. Glass.
    3. Outside handle.
  2. Loosen the mounting screw (A).
    Fig 1: Identifying Mounting Screw
    G06857920Courtesy of HYUNDAI MOTOR CO.
  3. Loosen the door module mounting bolts, then remove the door module (A).

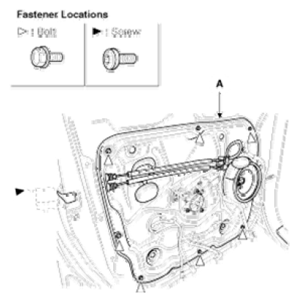

    Fig 2: Identifying Door Module
    G06857921Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the connector (A).
  5. Disconnect the door module wiring harness (B), then remove the module assembly.

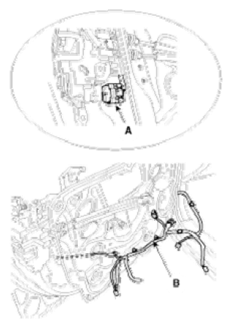

    Fig 3: Identifying Door Module Connector
    G06857922Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
    NOTE:
    • The area of whole parts should be applied with sufficient grease.
    • Make sure the connector is plugged in properly and each rod is connected securely.
    • Make sure the door lock and open properly.
