Module Assembly Replacement

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts.
    1. Door trim.
    2. Window glass.
    3. Outside handle.
  2. Loosen the outside handle base mounting screw (A).
    Fig 1: Identifying Outside Handle Base Mounting Screw
    G06857937Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the door module mounting bolts and screws, then remove the door module (A).
    Fig 2: Identifying Door Module
    G06857938Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the connector (A).
  5. Detach the clips, then remove the wiring harness (B).

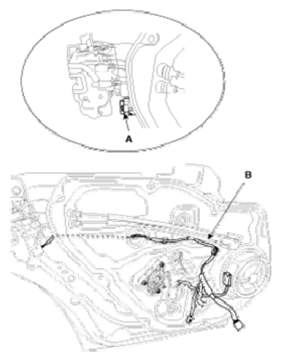

    Fig 3: Identifying Connector, Clips And Wiring Harness
    G06857939Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
    NOTE:
    • The area of whole parts should be applied with sufficient grease.
    • Make sure the connector is plugged in properly and each rod is connected securely.
    • Make sure the door lock and open properly.
