Latch Assembly Replacement

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tailgate trim.
Disconnect the tailgate latch connector (A).

Fig 1: Identifying Tailgate Latch Connector
Courtesy of HYUNDAI MOTOR CO.

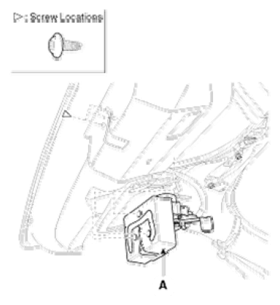

After loosening the mounting screws, then remove the latch assembly (A).

Fig 2: Identifying Latch Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is connected properly and the connecting rod is connected properly.
- Make sure the tailgate opens properly and locks securely.
