Circuit Diagram

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

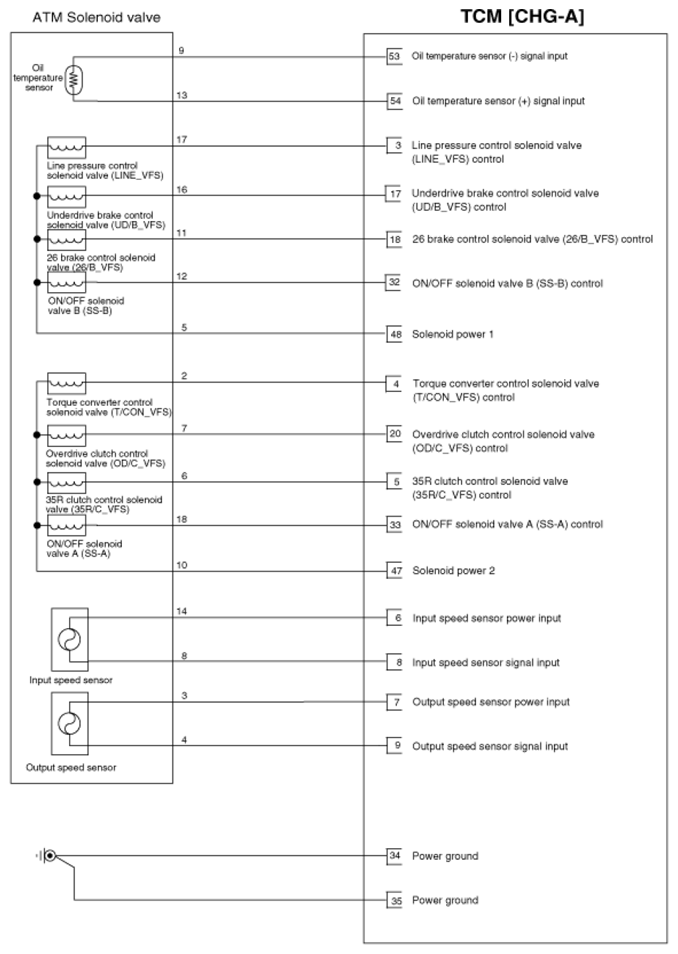

Fig 1: TCM Connector (CHG-A) - Circuit Diagram (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

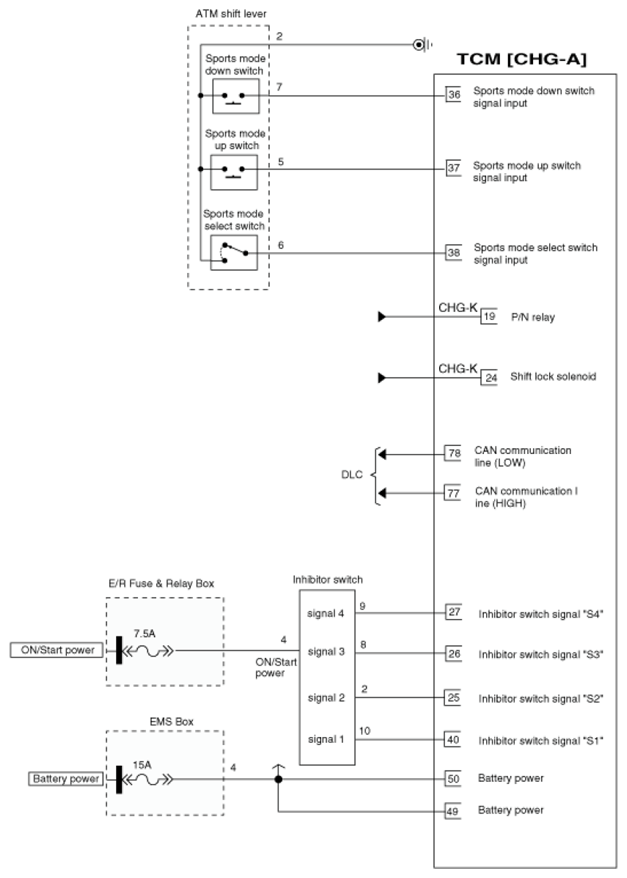

Fig 2: TCM Connector (CHG-A) - Circuit Diagram (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
