Repair Procedures: Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

The windshield deicer switch inputs can be checked using the GDS.
To check the input value of windshield deicer switch, select option "BCM".
Select option "Current Data".

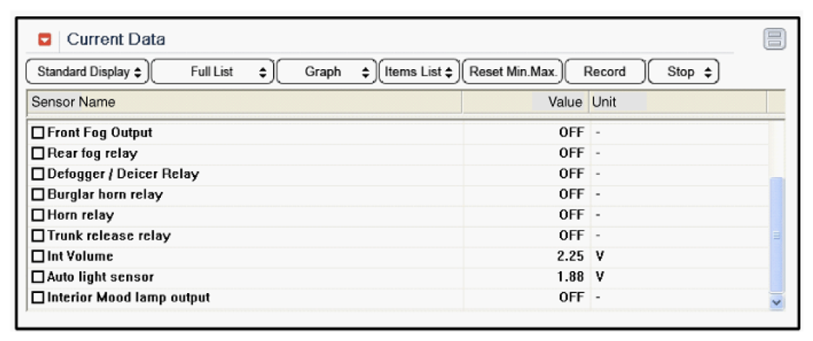

Fig 1: Screen Display - Windshield Deicer Switch Current Data
Courtesy of KIA MOTORS AMERICA, INC.
To check the input value of windshield deicer switch in force mode, select option.

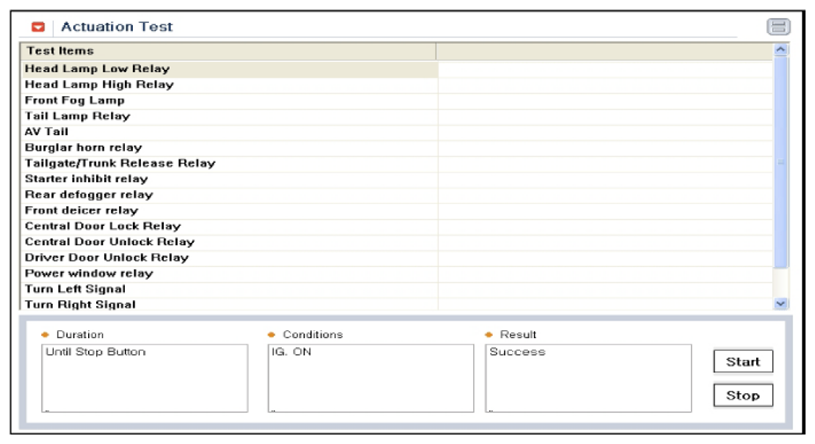

Fig 2: Screen Display - Test Items

Courtesy of KIA MOTORS AMERICA, INC.
