Circuit Diagram

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

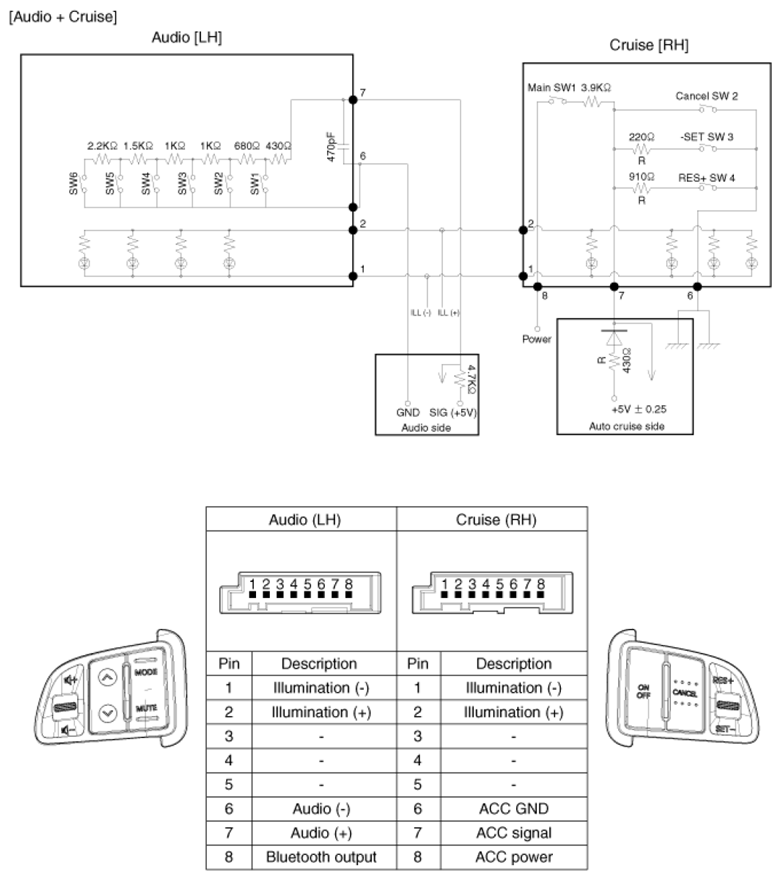

Fig 1: Audio Remote Control Circuit Diagram (Audio & Cruise)

Courtesy of KIA MOTORS AMERICA, INC.

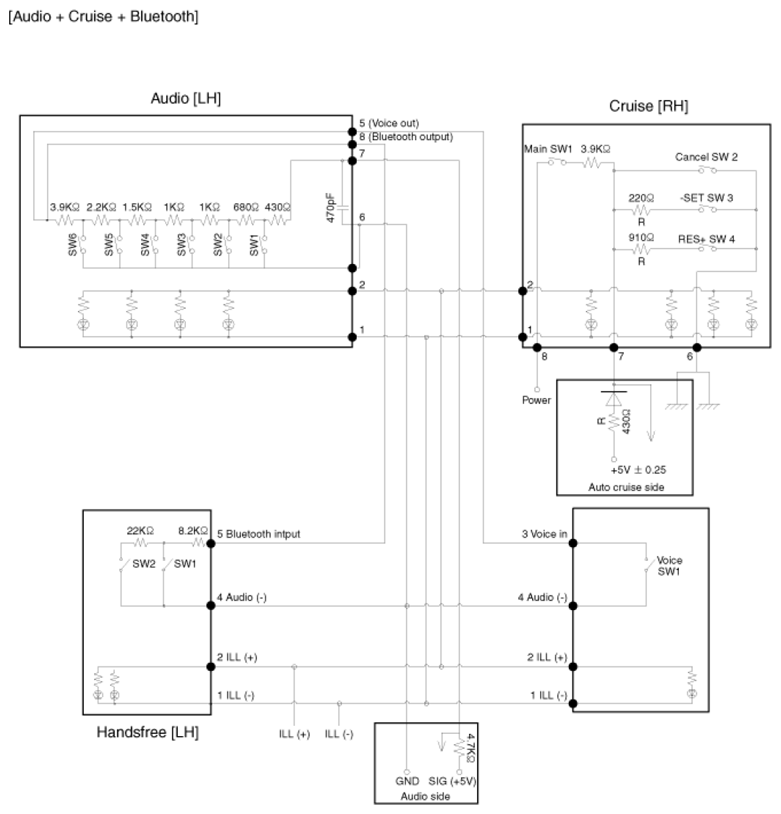

Fig 2: Audio Remote Control Circuit Diagram (Audio, Cruise & Bluetooth)

Courtesy of KIA MOTORS AMERICA, INC.

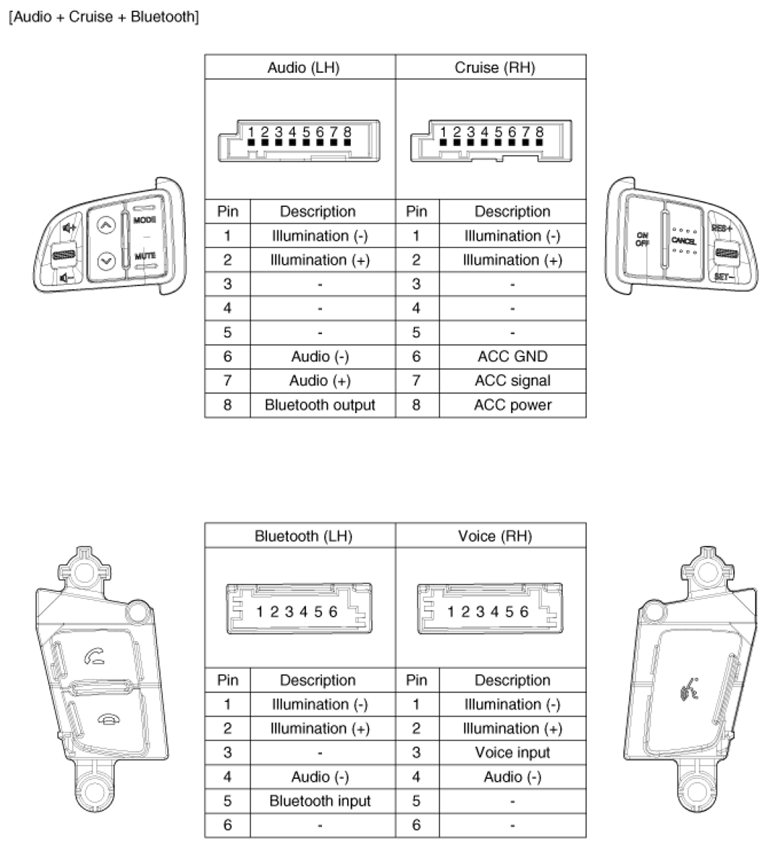

Fig 3: Audio Remote Control Connector Terminal Identification (Audio, Cruise & Bluetooth)

Courtesy of KIA MOTORS AMERICA, INC.
