Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

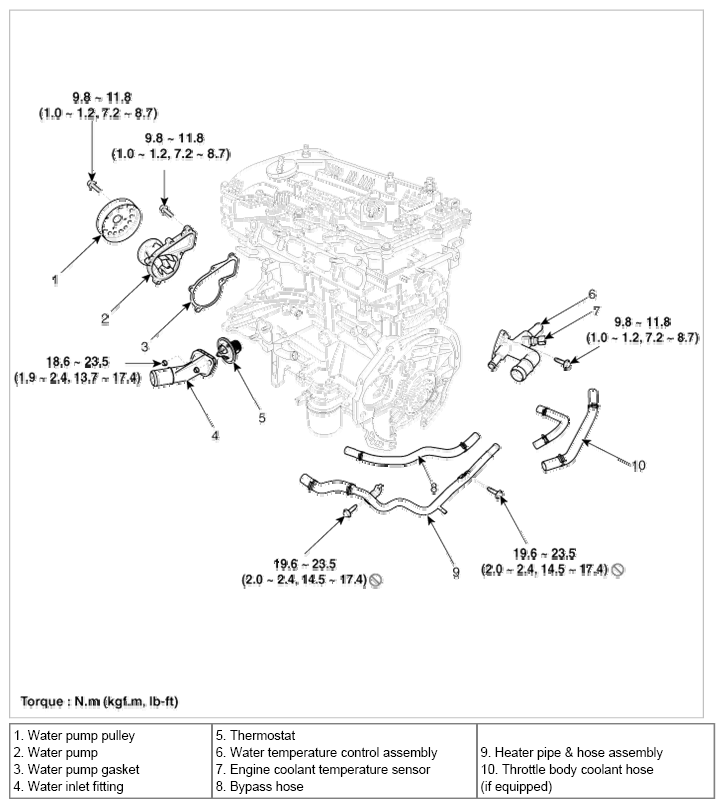

Fig 1: Water Pump Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
